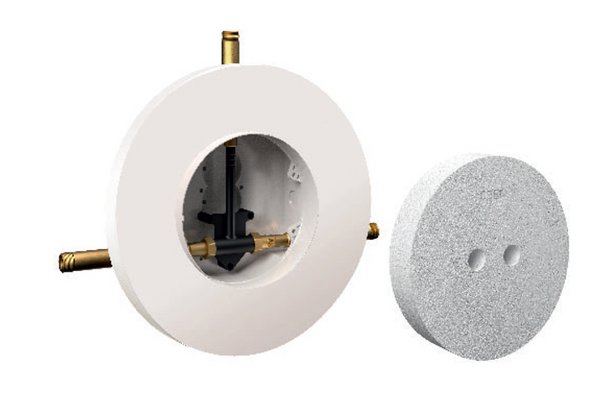

CONBOX FLANGE raw-assembling set for concealed shower, DN15 with bonding flange, DN15 conr1112
CONBOX FLANGE raw-assembling set for concealed shower, thermostat, DN15 with bonding flange
Raw-assembling set for mechanical and electronic shower equipment based on the adaptive multifunctional water path CONGENIAL with thermostat, designed as flush-mounted shower in nominal width DN15. Application area in new construction and renovation in public, semi-public and commercial sanitary facilities.
Consisting of:
• Concealed shower box with bonding flange CONBOX FLANGE
• Recessed enclosure: ABS, dimensions (WxHxD minimum): 272x232x96 mm, self-supporting
• Fastener brackets for mounting material with max. diameter 8 mm
• Wall outlet diameter 230 mm can be cut to length of tile front edge, condensate drain slope
• Sealed and sound-insulated brass entrances and exits, inlet with shut-off valves R 1/2
• Detachable connecting coupling for exchange the flushing piece on the water path
• Mounting depth with final assembly set: 96-110 mm
• Flushing piece: ABS, waterless and hygienically tested for leakage
• Protective plug: EPS, dimension (ØxD) 226x40 mm
• Bonding flange made of ABS, (ØxD) 430x12 mm
• Connection to cold and hot water
