CONGENIAL concealed shower stainless steel, round cover plate, without TD, On-/Off-Handle, thermostat, DN15 conm2113216000
CONGENIAL concealed shower, stainless steel, round, thermostat, on/off-handle, DN15 - final assembly kit
Final assembly kit for mechanical shower, device designed as concealed shower in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

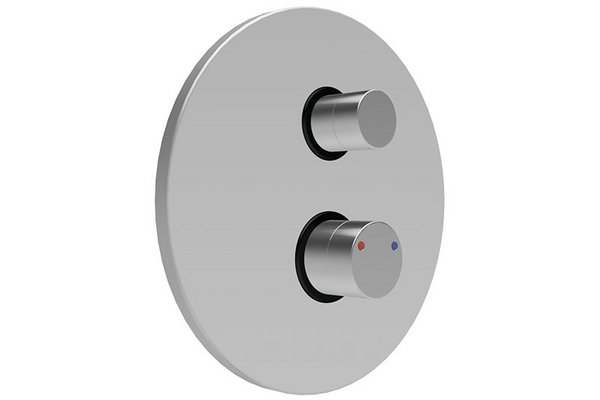

• Concealed shower final assembly kit with round cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust quadruple lock, multi sealing system with drainage system for condensation
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Adaptive multifunctional water path CONGENIAL
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid chromed brass, with safety stop
• Choice of temperature setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• Some of the functional parts can be dismantled during maintenance work without removing the valve body
• Mechanical operation of the shower function via on/off-handle
Operating pressure: 1,5 – 5,0 bar
Water temp. standard operation (max.): 70 °C
Flow rate DN15: 0,15 l/s (flow rate regulator)
Water flow time setting range: 3 – 30 s
Water flow time factory setting: 30 s

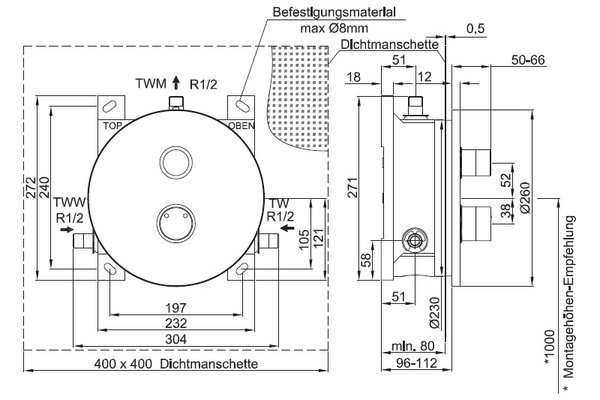

Dimension (ØxD): 260x12 mm
