CONBOX raw-assembling set for concealed shower, with thermostat, DN15 conr0112

CONBOX raw-assembling set for concealed shower, thermostat, DN15

Raw-assembling set for mechanical and electronic shower equipment based on the adaptive multifunctional water path CONGENIAL with thermostat, designed as flush-mounted shower in nominal width DN15. Application area in new construction and renovation in public, semi-public and commercial sanitary facilities.

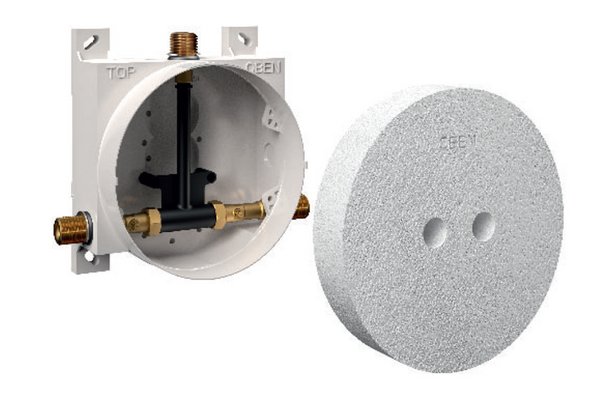

Consisting of:
• Concealed shower box CONBOX
• Recessed enclosure: ABS, dimensions (WxHxD minimum): 232x272x96 mm, self-supporting
• Fastener brackets for mounting material with max. diameter 8 mm
• Wall outlet diameter 230 mm can be cut to length of tile front edge, condensate drain slope
• Sealed and sound-insulated brass entrances and exits, inlet with shut-off valves R 1/2
• Detachable connecting coupling for exchange the flushing piece on the water path
• Mounting depth with final assembly set: 96-110 mm
• Flushing piece: ABS, waterless and hygienically, tested for leakage
• Protective plug: EPS, dimension (ØxD) 226x40 mm
• Gasket ring: PE, dimensions (WxH) 450x450 mm, with expansion zone
• Connection to cold and hot water

cone2113211100	CONGENIAL concealed shower stainless steel, without cleaning stop, round cover plate, without TD, hygienic flushing, piezo push button, battery, stainless-steel, thermostat, DN15 (CONGENIAL battery round)
cone2113211140	CONGENIAL concealed shower stainless steel, with cleaning stop, round cover plate, without TD, hygienic flushing, piezo push button, battery, stainless-steel, thermostat, DN15 (CONGENIAL battery cleaning stop round)
cone2113211200	CONGENIAL concealed shower stainless steel, without cleaning stop, round cover plate, without TD, hygienic flushing, piezo push button, Mains operation, stainless-steel, thermostat, DN15 (CONGENIAL mains round)
cone2113211210	CONGENIAL concealed shower stainless steel, without cleaning stop, round cover plate, without TD, hygienic flushing with key switch, piezo push button, Mains operation, stainless-steel, thermostat, DN15 (CONGENIAL mains external hygiene flushing round)
cone2113211230	CONGENIAL concealed shower stainless steel, without cleaning stop, round cover plate, with therm. disinfection, hygienic flushing, piezo push button, Mains operation, stainless-steel, thermostat, DN15 (CONGENIAL mains thermal disinfection round)
cone2113211240	CONGENIAL concealed shower stainless steel, with cleaning stop, round cover plate, without TD, hygienic flushing, piezo push button, Mains operation, stainless-steel, thermostat, DN15 (CONGENIAL mains cleaning stop round)
cone2113211336	CONGENIAL concealed shower stainless steel, cleaning stop CNX, round cover plate, without TD, hygienic flushing via CNX, piezo push button, CNX Bus 30V/DC, stainless-steel, thermostat, DN15 (CONGENIAL CNX round)
cone2113211360	CONGENIAL concealed shower stainless steel, cleaning stop CNX, round cover plate, therm. disinfect. CNX, hygienic flushing via CNX, piezo push button, CNX Bus 30V/DC, stainless-steel, thermostat, DN15 (CONGENIAL CNX thermal disinfection round)
cone2115211100	CONGENIAL concealed shower stainless steel, without cleaning stop, angular cover plate, without TD, hygienic flushing, piezo push button, battery, stainless-steel, thermostat, DN15 (CONGENIAL battery angular)
cone2115211140	CONGENIAL concealed shower stainless steel, with cleaning stop, angular cover plate, without TD, hygienic flushing, piezo push button, battery, stainless-steel, thermostat, DN15 (CONGENIAL battery cleaning stop angular)
cone2115211200	CONGENIAL concealed shower stainless steel, without cleaning stop, angular cover plate, without TD, hygienic flushing, piezo push button, Mains operation, stainless-steel, thermostat, DN15 (CONGENIAL mains angular)
cone2115211210	CONGENIAL concealed shower stainless steel, without cleaning stop, angular cover plate, without TD, hygienic flushing with key switch, piezo push button, Mains operation, stainless-steel, thermostat, DN15 (CONGENIAL mains external hygiene flushing angular)
cone2115211230	CONGENIAL concealed shower stainless steel, without cleaning stop, angular cover plate, with therm. disinfection, hygienic flushing, piezo push button, Mains operation, stainless-steel, thermostat, DN15 (CONGENIAL mains thermal disinfection angular)
cone2115211240	CONGENIAL concealed shower stainless steel, with cleaning stop, angular cover plate, without TD, hygienic flushing, piezo push button, Mains operation, stainless-steel, thermostat, DN15 (CONGENIAL mains cleaning stop angular)
cone2115211336	CONGENIAL concealed shower stainless steel, cleaning stop CNX, angular cover plate, without TD, hygienic flushing via CNX, piezo push button, CNX Bus 30V/DC, stainless-steel, thermostat, DN15 (CONGENIAL CNX angular)
cone2115211360	CONGENIAL concealed shower stainless steel, cleaning stop CNX, angular cover plate, therm. disinfect. CNX, hygienic flushing via CNX, piezo push button, CNX Bus 30V/DC, stainless-steel, thermostat, DN15 (CONGENIAL CNX thermal disinfection angular)
cone241321270	CONCASH 2.0 concealed shower stainless steel, without cleaning stop, round cover plate, without TD, hygienic flushing, piezo push button, Mains operation, stainless-steel, thermostat, DN15, paid water (CONCASH mains hygiene flushing round)
cone241521270	CONCASH 2.0 concealed shower stainless steel, without cleaning stop, angular cover plate, without TD, hygienic flushing, piezo push button, Mains operation, stainless-steel, thermostat, DN15, paid water (CONCASH mains hygiene flushing angular)
conm2113214000	CONGENIAL concealed shower stainless steel, round cover plate, without TD, water hydraulic, thermostat, DN15 (CONGENIAL water hyd. round)
conm2113214020	CONGENIAL concealed shower stainless steel, without cleaning stop, round cover plate, with therm. disinfection, water hydraulic, thermostat, DN15 (CONGENIAL water hyd. thermal disinfection manual round)
conm2113215000	CONGENIAL concealed shower stainless steel, round cover plate, without TD, Oil-hydraulic, thermostat, DN15 (CONGENIAL oil hyd. round)
conm2113215020	CONGENIAL concealed shower stainless steel, round cover plate, with therm. disinfection, Oil-hydraulic, thermostat, DN15 (CONGENIAL oil hyd. thermal disinfection manual round)
conm2113216000	CONGENIAL concealed shower stainless steel, round cover plate, without TD, On-/Off-Handle, thermostat, DN15 (CONGENIAL Open/Close round)
conm2113216020	CONGENIAL concealed shower stainless steel, round cover plate, with therm. disinfection, On-/Off-Handle, thermostat, DN15 (CONGENIAL Open/Close thermal disinfection manual round)
conm2115214000	CONGENIAL concealed shower stainless steel, angular cover plate, without TD, water hydraulic, thermostat, DN15 (CONGENIAL water hyd. angular)
conm2115214020	CONGENIAL concealed shower stainless steel, without cleaning stop, angular cover plate, with therm. disinfection, hygienic flushing, water hydraulic, thermostat, DN15 (CONGENIAL water hyd. thermal disinfection manual angular)
conm2115215000	CONGENIAL concealed shower stainless steel, angular cover plate, without TD, Oil-hydraulic, thermostat, DN15 (CONGENIAL oil hyd. angular)
conm2115215020	CONGENIAL concealed shower stainless steel, angular cover plate, with therm. disinfection, Oil-hydraulic, thermostat, DN15 (CONGENIAL oil hyd. thermal disinfection manual angular)
conm2115216000	CONGENIAL concealed shower stainless steel, angular cover plate, without TD, On-/Off-Handle, thermostat, DN15 (CONGENIAL Open/Close angular)
conm2115216020	CONGENIAL concealed shower stainless steel, angular cover plate, with therm. disinfection, On-/Off-Handle, thermostat, DN15 (CONGENIAL Open/Close thermal disinfection manual angular)
