CONCASH 2.0 concealed shower stainless steel, without cleaning stop, angular cover plate, without TD, hygienic flushing, piezo push button, Mains operation, stainless-steel, thermostat, DN15, paid water cone241521270

CONCASH 2.0 concealed shower, stainless steel, angular, thermostat, piezo switch, DN15, paid water release, mains - final assembly kit

Final assembly kit for electronic shower, device designed as concealed shower in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

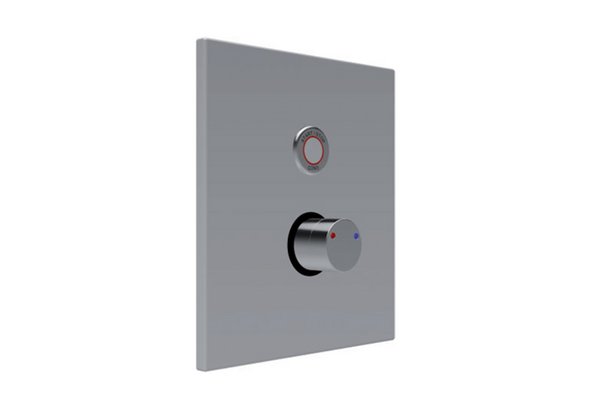

• Concealed shower final assembly kit with angular cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust double lock, multi sealing system with drainage system for condensation
• Support frame for cover plate: implementing functional elements and thermostat incl. EPDM sealing rings
• Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid chromed brass, with safety stop
• Choice of temperature and setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• All functional parts can be disassembled from the front during maintenance work without removing the valve body
• Electronic operation of the shower function via piezo switch after release by coin validator, piezo switch: colour ring red, rosette chrome plated
Paid water release:
The water flow time and payment parameters can be accessed via the coin validator.

Mains:
Power supply over 24 V/DC power supply for surface-mounted version in installation box or for DIN top-hat rail mounting

Execution options:
Hygienic flush (mains):
Hygienic flush (electronic): the hygienic flush is carried out in CONCASH showers by programming via the coin validator.

Operating voltage (mains): 24 V/DC
Operating pressure: 1,5 – 5,0 bar
Water temp. standard operation (max.): 70 °C
Flow rate DN15: 0,15 l/s (flow rate regulator)
Water flow time setting range (max.): 1000 min
Hygienic flush setting range via the coin validator: 0-240 s
Electronic protection type: IP68

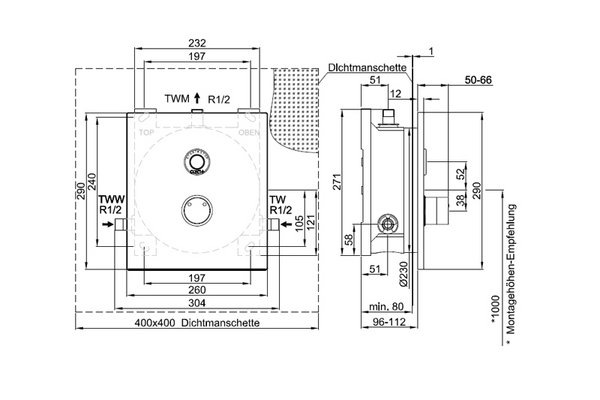

Dimensions (WxHxD): 260x290x12 mm
