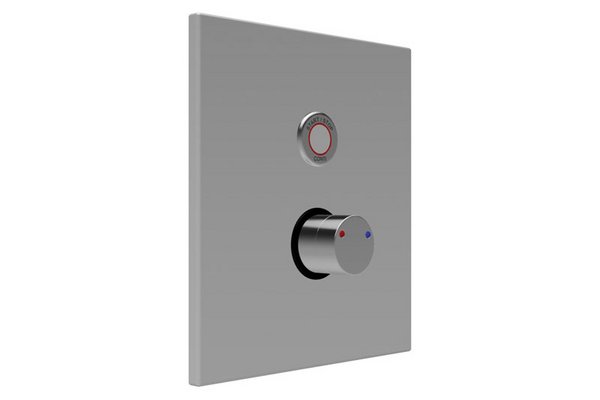

CONTI+ CONGENIAL Concealed shower Rectangular stainless steel, electric, Piezo Probes, Mains operation, Thermostat, Hygienic flushing, Cleaning stop, DN15, FinishedAssembly Set CONE2115211240

Individual valve control of shower, washbasin and urinal valves for programming, direct function triggering, logging and reading out data.Automatic mixed water flush of electronic faucets – with demand-dependent triggering at intervals, time control or a calendar function, as required, either integrated in the CNX water management system or accessed via the Service APP.The thermostatic mixing device with scald protection ensures safety during the shower.

CONGENIAL concealed shower, stainless steel, angular, thermostat, Piezo, DN15 - final assembly kit

Final assembly kit for electronic shower, device designed as concealed shower in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

• Concealed shower final assembly kit with angular cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust quadruple lock, multi sealing system with drainage system for condensation
• Support frame for cover plate: ABS with EPDM lip seal
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid chromed brass, with safety stop
• Choice of temperature and setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• All functional parts can be disassembled during maintenance work without removing the valve body
• Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring red, rosette chrome plated

Mains:
12 V/DC series wiring to connect to central mains power supply (see chapter accessories)

Execution options:
Hygienic flush (mains):
Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by programming via the piezo switch or the Service APP per shower.
Cleaning stop (mains):
The cleaning stop can be activated in electronic showers by positioning a magnet - RC Switch, on the cover respectively cover plate. Shower function via actuation of the piezo switch is interrupted for the time the magnet is positioned there.

Connection voltage (mains): 12-28 V/DC

Operating pressure: 1.5 - 5.0 bar
Flow rate DN15: 0.15 l/s (flow rate controller)
Water temperature in standard mode (max.): 70 °C
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse setting range: 12, 24 or 72 h, or can be disabled - all via piezo pushbutton setting; other sanitary rinse intervals can be set via the Service APP
Sanitary rinse factory setting: 12 h after the water flow was last triggered, 30 s water running time

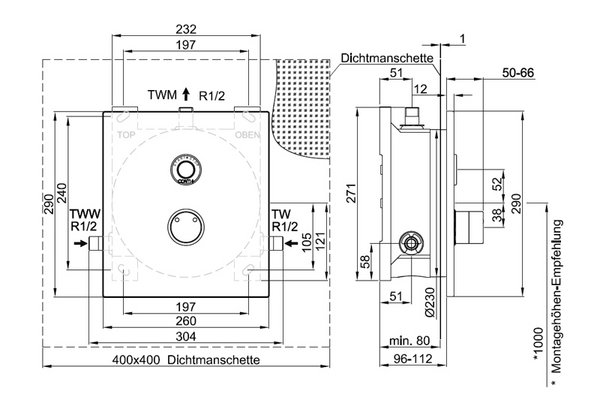

Dimensions (WxHxD): 260 x 290 x 12 mm
Electronic IP protection: IP68

0326751 CONTI+ Collar Piezo Probes Chrome-plated brass, 48 mm, Chrom (Rosette piezo switch Ø 48 mm, chrome-plated brass)
0590360 CONTI+ Deflector ring 61 x 49,5 x 7,5 mm (Deflector ring thermostatic handle Ø 61 x Ø 49,5 x 7,5 mm)
0605520 CONTI+ Shower head holder for shower rail, Stainless steel fine matt (Shower head holder)
0605550 CONTI+ Shower rail with shower head holder, , 1000 mm (Shower rail with shower head holder 1,0 Meter)
0625351 CONTI+ CONHEAD Handheld shower Anti-limescale (Hand shower set CONHEAD 90 Anti-limescale)
0670860 CONTI+ Flow rate regulator Bypass, 3.0 liters (Flow regulator 3.0 litres bypass)
0903161 CONTI+ CONBOX Cover Plate Rectangular electrical/mechanical (Cover plate angular CONBOX electrical/mechanical)
0910350 CONTI+ Final assembly set CONBOX, (Final assembly kit CONBOX)
0950642 CONTI+ Backflow Preventer Cartridge Bypass, Red (Backflow preventer cartridge bypass red)
0951300 CONTI+ Piezo Probes Set with color rings (red/blue), Gasket, reducer and nut (Set piezo switch with color rings (red/blue), seal, reducing washer and nut)
0960620 CONTI+ Stuff 3-valve body 07 CONPACT complete, (Plug 3. Valve)
0960640 CONTI+ Stuff Solenoid valve holder 1 (Plug Solenoid valve seat 1)
0961310 CONTI+ Carrier unit incl. mounting screws, CONBOX carrier unit included, Mounting screws, for CONTI+ CONBOX (Carrier unit CONBOX including mounting screws)
0962251 CONTI+ Backflow Preventer Cartridge white, with sieve (Backflow preventer cartridge white with strainer)
0962490 CONTI+ Stuff Solenoid valve mount 2, for bypass section, thermal disinfection (Plug Solenoid valve seat 2 (bypass section thermal disinfection))
CONO010000 CONTI+ CONHEAD jet shower head GOLF for flush-mounted installation, Chrom, DN15 (CONHEAD GOLF UP-Dusche Chrom)
CONO020000 CONTI+ CONHEAD Rain shower head RAIN2 for flush-mounted installation, Chrom, DN15 (CONHEAD RAIN2 UP-Dusche Chrom)
CONO030000 CONTI+ CONHEAD Rain shower head SHORTY for flush-mounted installation, Chrom, DN15 (CONHEAD SHORTY UP-Dusche Chrom)
CONO040000 CONTI+ CONHEAD Handheld shower kit Shower rail 1000 mm, For wall mounting, DN15 (CONHEAD Set UP-Dusche Handbrausegarnitur)
CONO050000 CONTI+ CONHEAD jet shower head CITY for flush-mounted installation, Chrom, DN15 (CONHEAD CITY UP-Dusche Chrom)
CONO051000 CONTI+ CONHEAD jet shower head CITY for flush-mounted installation, stainless steel, DN15 (CONHEAD CITY UP-Dusche Edelstahl)
CONO094000 CONTI+ CONHEAD Adapter Push for GOLF / RAIN2, DN15 (Adapter Rain2 + Golf)
CONO320000 CONTI+ Solenoid valve cartridge 6 V (Solenoid valve cartridge 6V/DC, 3W, bistable)
CONO670200 CONTI+ Extension kit CONGENIAL electric, 30 mm (CONGENIAL Verlängerungssatz)
CONZ0500000 CONTI+ Fiber seals for arrivals and departures, for CONTI+ CONGENIAL / CONGENIAL FIT / CONFRESH (Fiber seals inlets and outlets)
CONZ0600000 CONTI+ Temperature stop rings Set with handle mount, washer and screw, for CONTI+ CONFRESH / CONGENIAL / CONGENIAL FIT / CONSMART / CONFRESH, red and blue (Set temperature stop rings red and blue)
CONZ0731000 CONTI+ Connection hose for hand showers, incl. seals and mounting screws, for CONTI+ CONPRIMUS (Tube for hand shower)
CONZ0920431 CONTI+ Thermostat handle Set with temperature stop rings (blue and red), handle mount, washer and screw, for CONTI+ CONGENIAL / CONGENIAL FIT / CONFRESH, Chrom (Set thermostatic handle CONGENIAL showers (chrome-plated))
CONZ1920431 CONTI+ Thermostat handle Set with temperature stop rings (blue and red), handle mount, washer and screw, for CONTI+ CONGENIAL / CONGENIAL FIT / CONFRESH, stainless steel (Set thermostatic handle CONGENIAL showers (stainless steel))
CONZ3001201 CONTI+ Thermostatic cartridge Set for showers until 08/2018, for CONTI+ CONGENIAL / CONGENIAL FIT / CONFRESH (Set thermostatic cartridges CONGENIAL showers until 08/2018)
CONZ3001202 CONTI+ Thermostatic cartridge Set for showers from 08/2018, for CONTI+ CONGENIAL / CONGENIAL FIT / CONFRESH (Set thermostatic cartridges CONGENIAL showers from 08/2018)
