CONGENIAL concealed shower stainless steel, cleaning stop CNX, round cover plate, without TD, hygienic flushing via CNX, piezo push button, CNX Bus 30V/DC, stainless-steel, thermostat, DN15 cone2113211336

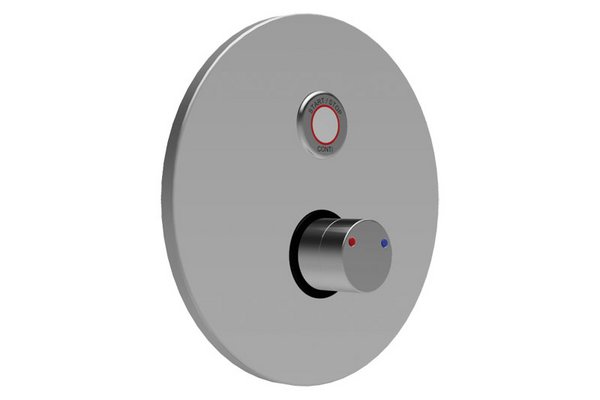

CONGENIAL concealed shower, stainless steel, round, thermostat, piezo switch, DN15 - final assembly kit

Final assembly kit for electronic shower, device designed as concealed shower in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

• Concealed shower final assembly kit with round cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust quadruple lock, multi sealing system with drainage system for condensation
• Support frame for cover plate: ABS with EPDM lip seal
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid chromed brass, with safety stop
• Choice of temperature and setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• All functional parts can be disassembled during maintenance work without removing the valve body
• Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring red, rosette chrome plated

Mains (CNX):
30 V/DC bus cabling to CNX central operating unit (see chapter accessories)

Execution options:
CNX Water Management System:
Integration of the shower into the software-controlled Water Management System for the automatic depiction of hygiene, system and safety functions of electronic showers, lavatory faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and device groups. Tamper-proof documentation of all operating, action and function messages.
Water flow time (CNX):
The water flow time of the shower function can be set and disabled for electronic showers, integrated into the CNX Water Management System, through the software parameter settings per shower or shower group.
Hygienic flush (CNX):
The hygienic flush can be set and disabled for electronic showers, integrated into the CNX Water Management System, by the software parameter settings per shower or shower group as interval or calendar function.
Cleaning stop CNX:
The operation stop (cleaning stop), interruption of the shower function, can be set in electronic showers, integrated into the CNX Water Management System, by the software parameter settings per shower or shower group as a calendar function.

Operating voltage (CNX): 30 V/DC
Operating pressure: 1,5 – 5,0 bar
Water temp. standard operation (max.): 70 °C
Water temp. thermal disinfection: Short-term for therm. disinfection 80 °C
Flow rate DN15: 0,15 l/s (flow rate regulator)
Water flow time setting range: 3-180 s
Water flow time factory setting: 30 s
Hygienic flush setting range: 12, 24 or 72 h, can be deactivated via setting on piezo switch, other hygienic flush intervals can be set via Service APP
Hygienic flush factory setting: 12 h after last water flow activation, 30 s water flow time
Electronic protection type: IP68

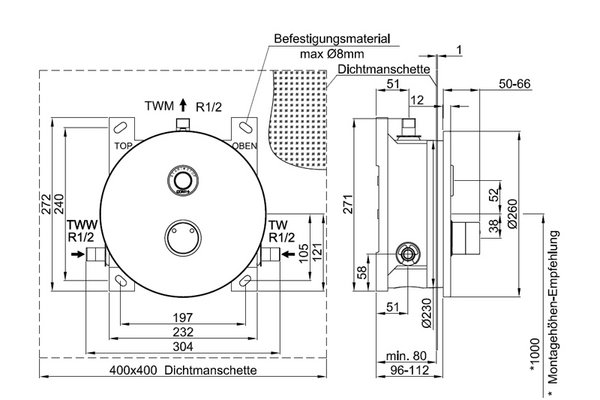

Dimension (ØxD): 260x12 mm
