Set TD mechanic CONO321000
Thermal disinfection set for mechanical CONTI+ showers
Upgrade of mechanical faucets for electronic thermal disinfection of shower installations based on the adaptive multifunctional water path CONGENIAL. Distributor connection for supplying the bistable solenoid valve to be installed in the bypass. The control electronics supplied allow the thermal disinfection to be triggered by a key switch (not included). Can be triggered by means of a key switch (not included in scope of delivery).
Manifold connection for supplying the bistable solenoid valve to be installed in the bypass.
The control electronics supplied allow thermal disinfection to be triggered using a key switch (not included in the scope of delivery).

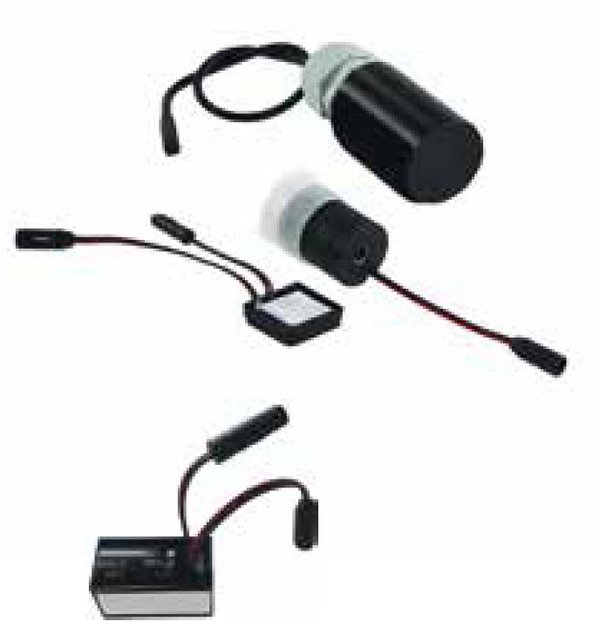

Consisting of:
• Distributor connection mains / bypass
• Solenoid valve 6 V/DC ROBUST, bistable
• Control electronics bypass 6 V/DC
• Transverter 12-28 VAC/DC / 6 VDC
Protection class: IP68
