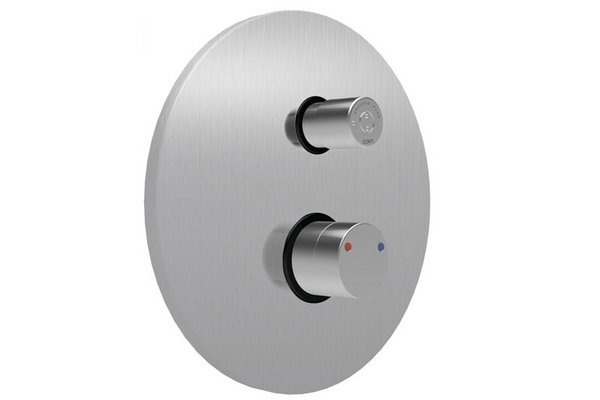

CONGENIAL concealed shower stainless steel, round cover plate, with therm. disinfection, Oil-hydraulic, thermostat, DN15 conm2113215020

The thermostatic mixing device with scald protection ensures safety during the shower.

CONGENIAL concealed shower, stainless steel, round, thermostat, oil hydraulics, DN15 - final assembly kit

Final assembly kit for mechanical shower, device designed as concealed shower in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

• Concealed shower final assembly kit with round cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust quadruple lock, multi sealing system with drainage system for condensation
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Adaptive multifunctional water path CONGENIAL with manual TD plug installed for thermal disinfection
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid chromed brass, with safety stop
• Choice of temperature setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• Some of the functional parts can be dismantled during maintenance work without removing the valve body
• Mechanical operation of the shower function via oil-hydraulic self-closing button

Execution options:
Thermal disinfection (manual):
Thermal disinfection (manual): The thermal disinfection of a shower based on the adaptive multifunctional water path CONGENIAL can be executed with a manual TD plug installed in the bypass directly per shower.

Operating pressure: 1,5 – 5,0 bar
Water temp. standard operation (max.): 70 °C
Flow rate DN15: 0,15 l/s (flow rate regulator)
Water flow time setting range: 3 – 30 s
Water flow time factory setting: 30 s

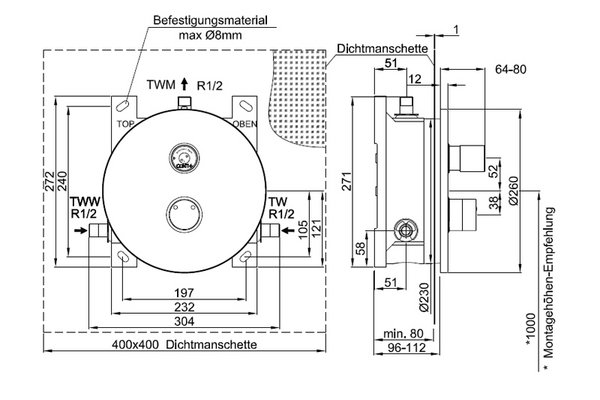

Dimension (ØxD): 260x12 mm

0326751 Rosette piezo switch Ø 48 mm, chrome-plated brass (Rosette Piezo-Taster Ø 48 mm, Messing verchromt)
0590360 Deflector ring thermostatic handle Ø 61 x Ø 49,5 x 7,5 mm (Abweisring Thermostatgriff Ø 61 x Ø 49,5 x 7,5 mm)
0590370 Deflector ring mechanical release / outlet Ø 50 x Ø 37,5 x 7,5 mm (Abweisring mechanische Auslösung / Auslauf)
0670860 Flow regulator 3.0 litres bypass (Durchflussmengenregler 3 Liter)
0903121 Cover plate round CONBOX electrical/mechanical (Abdeckplatte rund CONBOX elektrisch/mechanisch)
0903161 Cover plate angular CONBOX electrical/mechanical (Abdeckplatte eckig CONBOX elektrisch/mechanisch)
0910350 Final assembly kit CONBOX (Endmontageset CONBOX)
0917000 Push button water hydraulics (Druckknopf Wasserhydraulik)
0940475 Oil hydraulics with insulating piece (Ölhydraulik mit Isolierstück)
0940485 Oil hydraulics with insulating piece and push button (pre-assembled) (Ölhydraulik mit Isolierstück und Druckknopf)
0950642 Backflow preventer cartridge bypass red (Rückflussverhinderer rot)
0951300 Set piezo switch with color rings (red/blue), seal, reducing washer and nut (Set Piezo-Taster mit Farbringen (rot/blau))
0960640 Plug Solenoid valve seat 1 (Stopfen Magnetventilaufnahme 1)
0961310 Carrier unit CONBOX including mounting screws (Trägereinheit CONBOX inklusive Befestigungsschrauben)
0962251 Backflow preventer cartridge white with strainer (Rückflussverhinderer weiss)
0962480 Receiver water hydraulics (Aufnahme Wasserhydraulik)
0962490 Plug Solenoid valve seat 2 (bypass section thermal disinfection) (Stopfen Magnetventilaufnahme 2)
CONO670400 Extension kit 30 mm, CONGENIAL water hydraulics (Verlängerungssatz 30 mm, Wasserhydraulik)
CONO670500 Extension kit 30 mm, CONGENIAL oil hydraulics (Verlängerungssatz 30 mm, Ölhydraulik)
CONZ0010491 Grease chamber upper part (Fettkammeroberteil)
CONZ0500000 Fiber seals inlets and outlets (Fiberdichtungen für Zu- und Abgang)
CONZ0600000 Set temperature stop rings red and blue (Set Temperaturanschlagringe rot und blau)
CONZ0800000 Cartridge water hydraulics with copper seal (Kartusche Wasserhydraulik)
CONZ0900000 Piston head piece oil hydraulics with spring, spindle, retainer and circlip (Kolbenkopfstück Ölhydraulik)
CONZ0910000 Push button oil hydraulics with spring and cap (Druckknopf Ölhydraulik)
CONZ0920000 Grease chamber upper part retainer with circlip (Fettkammeroberteil Aufnahme)
CONZ0920431 Set thermostatic handle CONGENIAL showers (chrome-plated) (Set Thermostatgriff verchromt)
CONZ0930000 Open/close handle with spindle (Auf-/Zu-Griff mit Spindel)
CONZ1920431 Set thermostatic handle CONGENIAL showers (stainless steel) (Set Thermostatgriff Edelstahl)
CONZ3001201 Set thermostatic cartridges CONGENIAL showers until 08/2018 (Set Thermostatkartuschen bis 08/2018)
CONZ3001202 Set thermostatic cartridges CONGENIAL showers from 08/2018 (Set Thermostatkartuschen ab 08/2018)
cono310000 TD plug (Stopfen TD manuell thermische Desinfektion)
cono320000 Solenoid valve cartridge 6V/DC, 3W, bistable, with 90 mm connection cable and plug, IP68 (Solenoid valve cartridge 6V/DC, 3W, bistable)
cono410000 CONGENIAL temperature sensor (Temperaturfühler m. Dichtung)
cono670100 Extension set 30, CONGENIAL, open/close handle (CONGENIAL Verlängerungssatz)
cono670200 Extension set 30, CONGENIAL, DN15 (CONGENIAL Verlängerungssatz)
