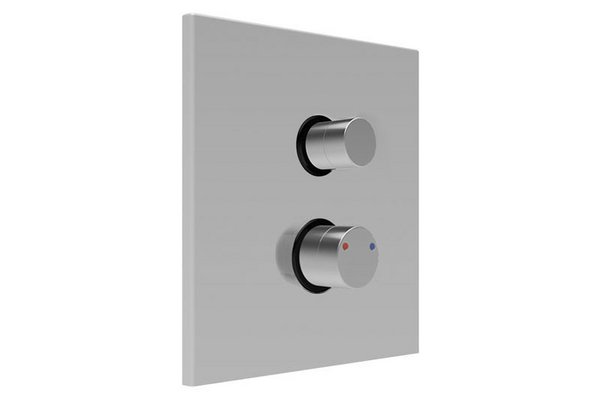

CONGENIAL concealed shower stainless steel, angular cover plate, with therm. disinfection, On-/Off-Handle, thermostat, DN15 CONM2115216020

The thermostatic mixing device with scald protection ensures safety during the shower.

CONGENIAL concealed shower, stainless steel, angular, thermostat, on/off-handle, DN15 - final assembly kit

Final assembly kit for mechanical shower, device designed as concealed shower in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

• Concealed shower final assembly kit with angular cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust quadruple lock, multi sealing system with drainage system for condensation
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Adaptive multifunctional water path CONGENIAL with manual TD plug installed for thermal disinfection
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid chromed brass, with safety stop
• Choice of temperature setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• Some of the functional parts can be dismantled during maintenance work without removing the valve body
• Mechanical operation of the shower function via on/off-handle

Execution options:
Thermal disinfection (manual):
Thermal disinfection (manual): The thermal disinfection of a shower based on the adaptive multifunctional water path CONGENIAL can be executed with a manual TD plug installed in the bypass directly per shower.

Operating pressure: 1,5 – 5,0 bar
Water temp. standard operation (max.): 70 °C
Flow rate DN15: 0,15 l/s (flow rate regulator)
Water flow time setting range: 3 – 30 s
Water flow time factory setting: 30 s

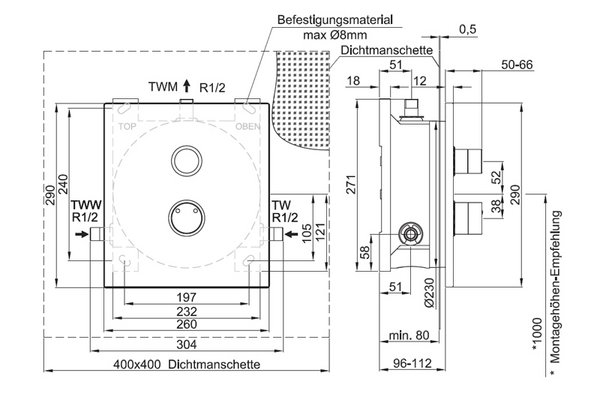

Dimension (WxHxD): 290x260x12 mm

0590360 Deflector ring thermostatic handle Ø 61 x Ø 49,5 x 7,5 mm (Deflector ring thermostatic handle Ø 61 x Ø 49,5 x 7,5 mm)
0590370 Deflector ring mechanical release / outlet Ø 50 x Ø 37,5 x 7,5 mm (Deflector ring mechanical release / outlet Ø 50 x Ø 37,5 x 7,5 mm)
0605520 Shower head holder (Shower head holder)
0605550 Shower rail with shower head holder 1,0 Meter (Shower rail with shower head holder 1,0 Meter)
0625351 Hand shower set CONHEAD 90 Anti-limescale (Hand shower set CONHEAD 90 Anti-limescale)
0670860 Flow regulator 3.0 litres bypass (Flow regulator 3.0 litres bypass)
0903161 Cover plate angular CONBOX electrical/mechanical (Cover plate angular CONBOX electrical/mechanical)
0910350 Final assembly kit CONBOX (Final assembly kit CONBOX)
0950642 Backflow preventer cartridge bypass red (Backflow preventer cartridge bypass red)
0960640 Plug Solenoid valve seat 1 (Plug Solenoid valve seat 1)
0961310 Carrier unit CONBOX including mounting screws (Carrier unit CONBOX including mounting screws)
0962251 Backflow preventer cartridge white with strainer (Backflow preventer cartridge white with strainer)
0962490 Plug Solenoid valve seat 2 (bypass section thermal disinfection) (Plug Solenoid valve seat 2 (bypass section thermal disinfection))
CONO010000 CONHEAD jet shower head GOLF, wall-mounted, chromed brass, DN15 (CONHEAD GOLF UP-Dusche Chrom)
CONO020000 CONHEAD Rain shower head RAIN2, wall-mounted, chromed brass, DN15 (CONHEAD RAIN2 UP-Dusche Chrom)
CONO030000 CONHEAD Rain shower head SHORTY, wall-mounted, chromed brass, DN15 (CONHEAD SHORTY UP-Dusche Chrom)
CONO040000 CONHEAD Handheld shower kit, wall-mounted, DN15 (CONHEAD Set UP-Dusche Handbrausegarnitur)
CONO050000 CONHEAD jet shower head CITY, wall-mounted, chromed brass, DN15 (CONHEAD CITY UP-Dusche Chrom)
CONO051000 CONHEAD Jet shower head CITY, without TD, wall-mounted, brushed V4A, DN15 (CONHEAD CITY UP-Dusche Edelstahl)
CONO094000 Adapter for shower heads, chromed brass, DN15 (Adapter Rain2 + Golf)
CONO310000 TD plug (Stopfen TD manuell thermische Desinfektion)
CONO670100 Extension set 30, CONGENIAL, open/close handle (CONGENIAL Verlängerungssatz)
CONZ0010491 Grease chamber upper part (Grease chamber upper part)
CONZ0500000 Fiber seals inlets and outlets (Fiber seals inlets and outlets)
CONZ0600000 Set temperature stop rings red and blue (Set temperature stop rings red and blue)
CONZ0731000 Tube for hand shower (Tube for hand shower)
CONZ0920000 Grease chamber upper part retainer with circlip (Grease chamber upper part retainer with circlip)
CONZ0920431 Set thermostatic handle CONGENIAL showers (chrome-plated) (Set thermostatic handle CONGENIAL showers (chrome-plated))
CONZ0930000 Open/close handle with spindle (Open/close handle with spindle)
CONZ1920431 Set thermostatic handle CONGENIAL showers (stainless steel) (Set thermostatic handle CONGENIAL showers (stainless steel))
CONZ3001201 Set thermostatic cartridges CONGENIAL showers until 08/2018 (Set thermostatic cartridges CONGENIAL showers until 08/2018)
CONZ3001202 Set thermostatic cartridges CONGENIAL showers from 08/2018 (Set thermostatic cartridges CONGENIAL showers from 08/2018)
