CONTI+ CONBOX FIT Raw assembly set Concealed shower for ready-to-assemble set with thermostat, DN15, Raw assembly set CONR5112
CONBOX FIT Raw-assembling set for concealed wall-mounted faucets, thermostat, DN15
Raw-assembling set for electronic wall-mounted faucets based on the adaptive multifunctional water path CONGENIAL, with thermostat, designed as faucet in nominal width DN15. Application area in new construction and renovation in public, semi-public and commercial sanitary facilities.
Consisting of:

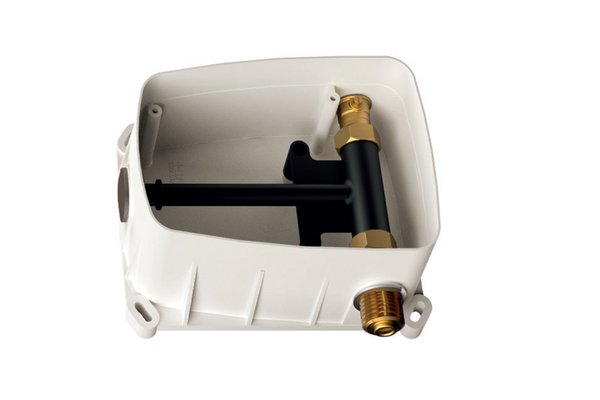

• Concealed box CONBOX FIT
• Recessed enclosure: ABS, dimensions (WxHxD min.) 216x157x127 mm, self-supporting
• Fastener brackets for mounting material with max. diameter 6 mm
• condensate drain slope, sealed and sound-insulated brass entrances and exits
• Inlet with shut-off valves R 1/2
• Mounting depth with final assembly set: 85-112 mm
• Flushing piece: ABS, waterless and hygienic tested for leakage
• Protective plug: EPS
• Gasket ring: PE, dimensions (WxH) 400x400 mm, with expansion zone
