CONGENIAL FIT concealed wall-mounted faucet, cleaning stop CNX, angular cover plate, without TD, hygienic flushing via CNX, IR-sensor, CNX Bus 30V/DC, thermostat, DN15 cone7156218336

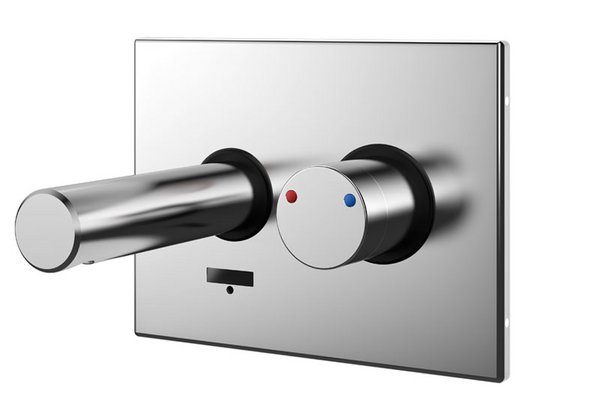

CONGENIAL FIT concealed wall-mounted faucet, rectangular, with IR sensor, with thermostat, chromed - final assembly kit

Final assembly kit for electronic lavatory faucet, device designed as concealed wall-mounted faucet in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

• Concealed shower final assembly kit with rectangular cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust double lock, multi sealing system with drainage system for condensation
• Support frame for cover plate: implementing functional elements and thermostat incl. EPDM sealing rings
• Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid chromed brass, with safety stop
• Choice of temperature and setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• All functional parts can be disassembled from the front during maintenance work without removing the valve body
• Electronic operation via IR sensor, IR double sensor system, with automatic setting feature

Execution options:
CNX Water Management System:
Integration of the faucet into the software-controlled CNX Water Management System for the automatic depiction of hygiene, system and safety functions of electronic showers, lavatory faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and device groups. Tamper-proof documentation of all operating, action and function messages.
Water flow time (CNX):
The water flow time of the faucet function can be set and disabled for electronic faucets, integrated into the CNX Water Management System or via Service APP, through the software parameter settings per faucet or faucet group. Setting range: 0 - 180 s, factory setting: 30 s.
Hygienic flush (CNX):
The hygienic flush can be set and disabled for electronic faucets, integrated into the CNX Water Management System or via Service APP, by the software parameter settings per faucet or faucet group as interval or calendar function. Factory setting: 30 s water flush after 12 h of last water flow activation.
Cleaning stop (CNX):
The operation stop (cleaning stop), interruption of the faucet function can be set in electronic faucets, integrated into the CNX Water Management System or via Service APP, by the software parameter settings per faucet or faucet group as a calendar function.

Operating voltage (CNX): 30 V/DC
Operating pressure: 1,5 –5,0 bar
Water temp. standard operation (max.): 70 °C
Flow rate DN15: 0,1 l/s (flow rate regulator)
Water flow time setting range: 3 –180 s
Water flow time factory setting: 30 s
Hygienic flush factory setting: 2 min preset (adjustable with click 0.5-20 min)
Electronic protection type: IP68

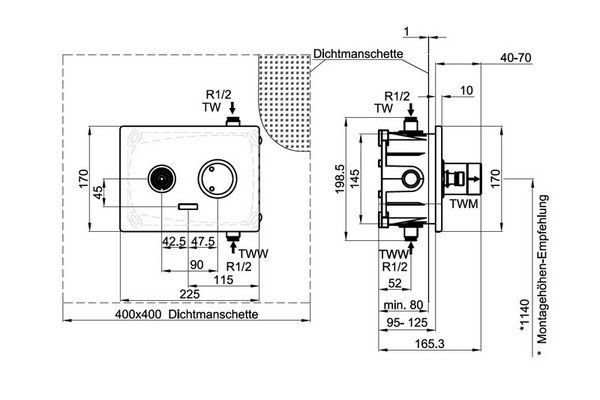

Dimensions (WxHxD): 225x170x10 mm
