CONTI+ CONGENIAL FIT Wall-mounted faucet concealed Rectangular stainless steel, electric, Infrared sensor, CNX operation, Thermostat, Hygienic flushing, stainless steel, DN15, FinishedAssembly Set CONE7116218336

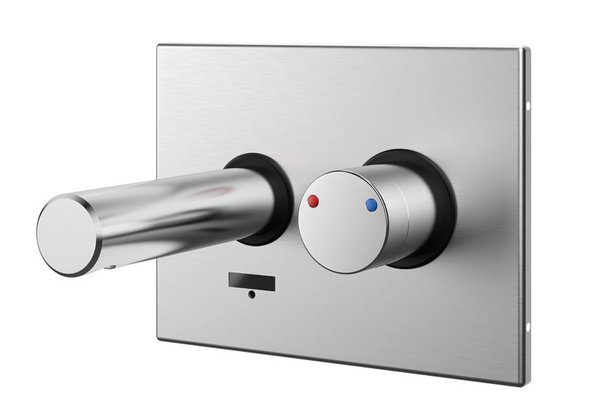

CONGENIAL FIT concealed wall-mounted faucet, rectangular, with IR sensor, with thermostat, stainless steel - final assembly kit

Final assembly kit for electronic lavatory faucet, device designed as concealed wall-mounted faucet in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

• Concealed shower final assembly kit with rectangular cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust double lock, multi sealing system with drainage system for condensation
• Support frame for cover plate: implementing functional elements and thermostat incl. EPDM sealing rings
• Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid chromed brass, with safety stop
• Choice of temperature and setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• All functional parts can be disassembled from the front during maintenance work without removing the valve body
• Electronic operation via IR sensor, IR double sensor system, with automatic setting feature

Execution options:
CNX Water Management System:
Integration of the faucet into the software-controlled CNX Water Management System for the automatic depiction of hygiene, system and safety functions of electronic showers, lavatory faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and device groups. Tamper-proof documentation of all operating, action and function messages.
Water flow time (CNX):
The water flow time of the faucet function can be set and disabled for electronic faucets, integrated into the CNX Water Management System or via Service APP, through the software parameter settings per faucet or faucet group. Setting range: 0 - 180 s, factory setting: 30 s.
Hygienic flush (CNX):
The hygienic flush can be set and disabled for electronic faucets, integrated into the CNX Water Management System or via Service APP, by the software parameter settings per faucet or faucet group as interval or calendar function. Factory setting: 30 s water flush after 12 h of last water flow activation.
Cleaning stop (CNX):
The operation stop (cleaning stop), interruption of the faucet function can be set in electronic faucets, integrated into the CNX Water Management System or via Service APP, by the software parameter settings per faucet or faucet group as a calendar function.

Connection voltage (CNX): 30 V/DC

Operating pressure: 1.5 - 5.0 bar
Flow rate DN15: 0.1 l/s (flow rate controller)
Water temperature in standard mode (max.): 70 °C
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse factory setting: Preset to 2 min (can be adjusted from 0.5 to 20 min with a Click)

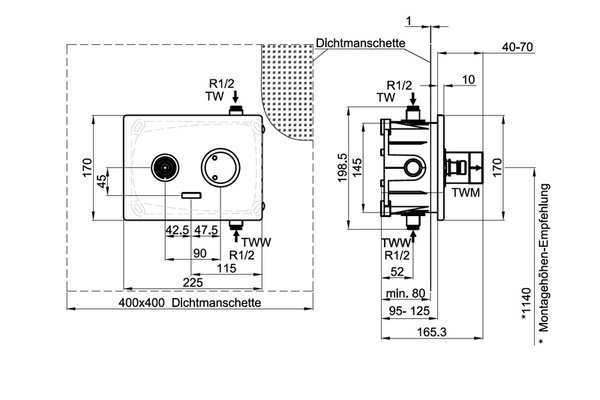

Dimensions (WxHxD): 225 x 170 x 10 mm
Electronic IP protection: IP68

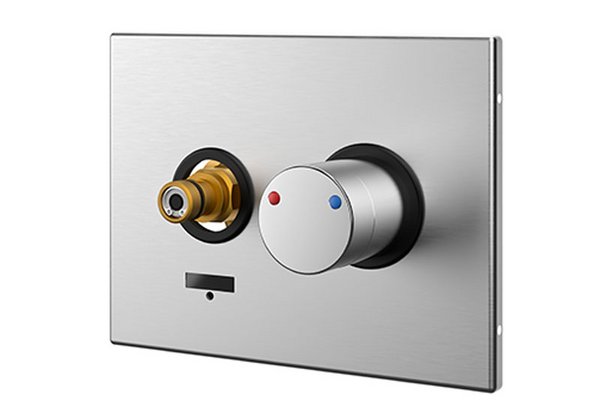

Projection: 170 mm, 220 mm (not included in the scope of delivery)
Outlet: fixed
