CONTI+ CONGENIAL FIT Wall-mounted faucet concealed Rectangular stainless steel, electric, Piezo Probes, Battery operation, Thermostat, Hygienic flushing, Chrom, DN15, FinishedAssembly Set CONE7156211100

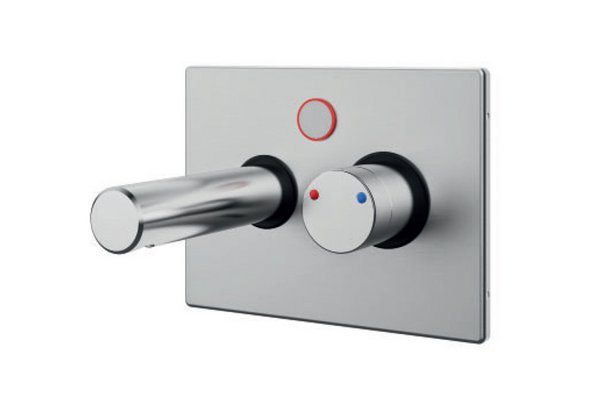

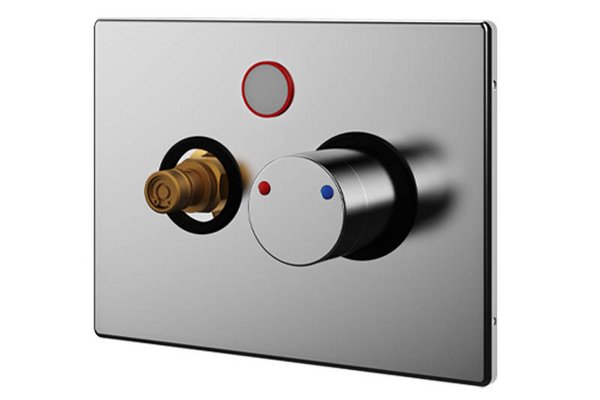

CONGENIAL FIT concealed wall-mounted faucet, rectangular, with piezo switch, with thermostat, chromed - final assembly kit

Final assembly kit for electronic lavatory faucet, device designed as concealed wall-mounted faucet in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

• Concealed shower final assembly kit with rectangular cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust double lock, multi sealing system with drainage system for condensation
• Support frame for cover plate: implementing functional elements and thermostat incl. EPDM sealing rings
• Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid chromed brass, with safety stop
• Choice of temperature and setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• All functional parts can be disassembled from the front during maintenance work without removing the valve body
• Electronic operation via IR sensor, IR double sensor system, with automatic setting feature

Execution options:
Hygienic flush (battery):
Hygienic flush (electronic): the hygienic flush can be carried out in electronic faucets by programming via Click or the Service APP per shower.

Connection voltage (battery): 6 V/DC

Operating pressure: 1.5 - 5.0 bar
Flow rate DN15: 0.1 l/s (flow rate controller)
Water temperature in standard mode (max.): 70 °C
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse setting range: 12, 24 or 72 h, or can be disabled - all via piezo pushbutton setting; other sanitary rinse intervals can be set via Service APP or CNX
Sanitary rinse factory setting: 12 h after the water flow was last triggered, 30 s water running time

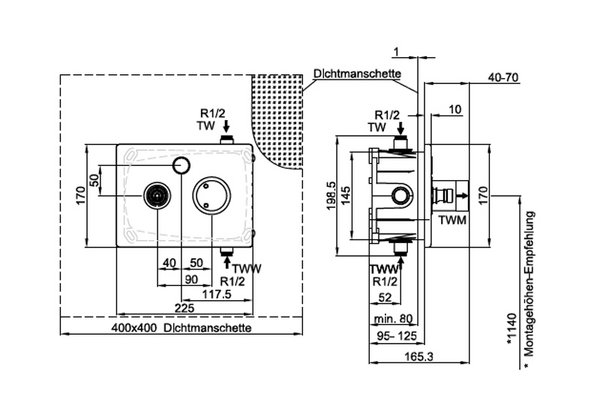

Dimensions (WxHxD): 225 x 170 x 10 mm
Electronic IP protection: IP68
Projection: 170 mm, 220 mm (not included in the scope of delivery)
Outlet: fixed
