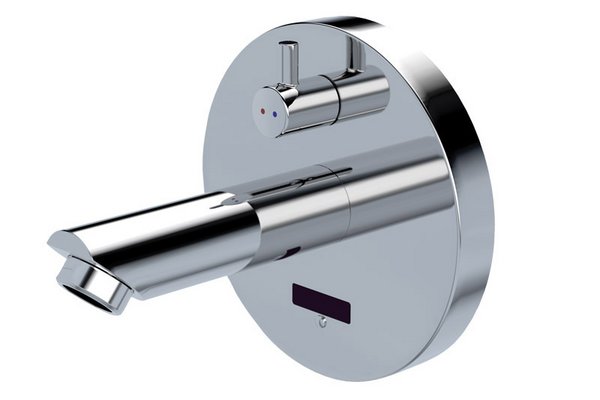

lino concealed wall-mounted lavatory faucet WV10, chrome, IR-sensor, Click, battery, temp. mixing 120.370.11

Automatic mixed water flush of electronic faucets – with demand-dependent triggering at intervals, time control or a calendar function, as required, either integrated in the CNX water management system or accessed via the Service APP.Infrared sensor to trigger the water flow.

lino concealed wall-mounted faucet WV10, with IR sensor, with temperature-mixing, chromed - final installation set

Touchless, electronically controlled lavatory faucet for flush mounting:
• Sturdy version, front plate and spout made of metal, chromed
• Reliable solenoid valve ROBUST (minimal level of water pressure surge)
• Dual infrared sensors (with automatic setting feature), microprocessor
• Follow-up time and sensor sensitivity adjustable with function key
• Check valves and built-in filters
• Continuous water flow time and hygienic flush time adjustable with function key
• Temperature adjustable
• Adjustable hot water limitation (mechanically)
• 12, 24 or 48-hour hygienic flush activatable with function key
• Compatible with CNX water management system possible
• Compatible with Service APP: Control of stored operational data, settings and control functions

Notice:
When integrated into the CNX Water Management System, the CNX Converter 6 V must be ordered separately.
Service APP only available in conjunction with BLE Converter - no permanent evaluation option.
When using the Service APP, the BLE Converter must be ordered separately.

Battery: 6 V Lithium CRP2 - commercial; life time up to 4 years
Operating pressure: 0,3 −10 bar
Water temperature (max.): 80 °C
Flow rate (approx.): 6 l/min / 1,6 gpm (3 bar)
Follow-up time: 1 s pre-set (adjustable with function key 0-10 s)
Continuous water flow and hygienic flush time: 2 min pre-set (adjustable with function key 0,5-20 min)
Sensor sensitivity: Automatic self-adapting sensor technology
Built-in filters: 0,3 mm mesh size
Aerator: Economic aerator, CASCADE (self-cleaning)

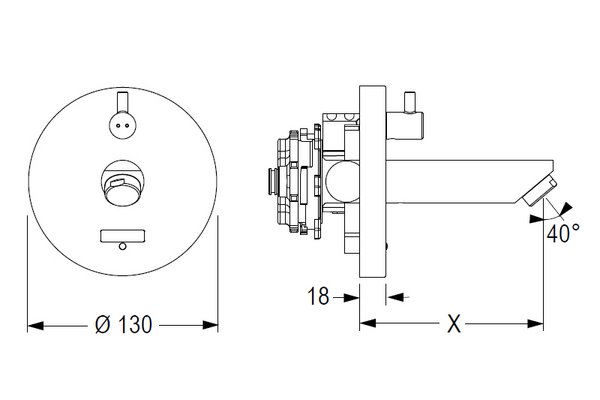

Spout (x): 170 mm
Click: Recessed function key - without additional functions
Engineering standards: DIN EN 200; Noise category I; CE

CONZ8139701 Varox Connection piece (Varox Anschlussstück)
CONZ8139721 Outlet 120mm including aerator and Threaded pin (Auslauf 120mm inklusive Perlator und Gewindestift)
CONZ8139722 Outlet 170mm including aerator and Threaded pin (Auslauf 170mm inklusive Perlator und Gewindestift)
CONZ8139723 Outlet 220mm including aerator and Threaded pin (Auslauf 220mm inklusive Perlator und Gewindestift)
CONZ8139724 Threaded pin M5x5 (Gewindestift M5x5)
CONZ8139725 Temperature lever complete WV (Verstellhebel komplett WV)
CONZ8139726 Rosette WV10 (Rosette WV10)
CONZ8139730 Electronics complete with Click-plus (Elektronik komplett mit Click-plus)
CONZ8139732 Rosette support (Rosettenträger)
CONZ8139734 Mandrel WV (Aufnahmedorn WV)
CONZ8139736 Dirt strainer (Schmutzsiebe)
CONZ8139737 O-Ring Set WV (O-Ring Set WV)
CONZ8139740 WV10 valve unit complete including solenoid valve cartridge (WV10 Ventilkörper komplett inklusive Kartuschenventil)
CONZ8139745 Rotary slide WV (Drehschieber WV)
CONZ8139746 Backflow valve Ø15mm (Rückschlagventil Ø15mm)
CONZ8139775 Rotary slide WV10 special version: 7 mm longer (Drehschieber WV10 Sonderversion: 7 mm länger)
CONZ8639718 Battery holder with round plug (Batteriehalterung mit Rundstecker)
CONZ8939103 Backflow valve Ø10mm (Rückschlagventil Ø10mm)
CONZ8939111 Sprayhead complete pressure-resistant, M24 (Strahlregler komplett druckfest, M24)
CONZ8939731 Electronics complete with Click (Elektronik komplett mit Click)
CONZ8955004 Battery replacement set (Batteriewechselset DL223A)
cono320000 Solenoid valve cartridge 6V/DC, 3W, bistable, with 90 mm connection cable and plug, IP68 (Solenoid valve cartridge 6V/DC, 3W, bistable)
