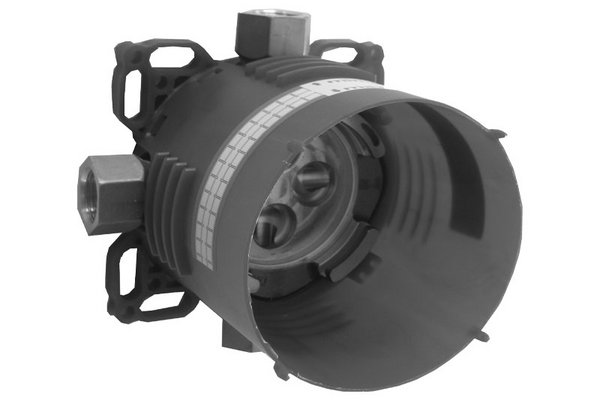

HANSAVAROX basic unit U3V, compact-solution, DN15 (shell set), without stop valve 220.027.00

HANSAVAROX basic unit U3V, compact- solution, DN15 (shell set)

VAROX basic unit, compact-solution, DN15 flush-mounted-body:

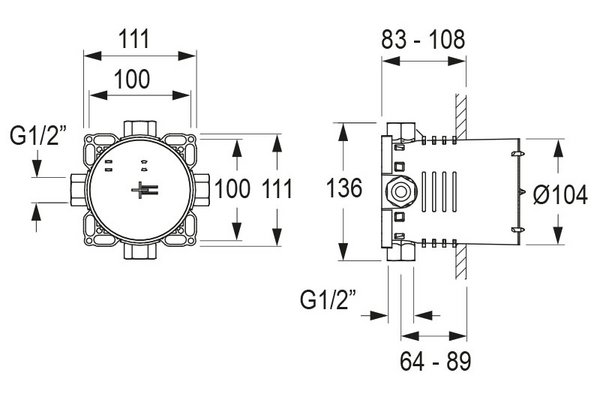

• Depth of installation: 83-108 mm
• Connection device: low-dezincifying brass (MS 63)
• Installation box with protection cover made of plastic
• Gasket ring
• Suitable for drywall installation
• Multifix-fastener system with G 1/2 connections (1 closing plug included)
• Built-in special B-Lock leakage test plug
• Flushing according to DIN 1988 with B-Lock leakage test plug
• Backflow prevention according to DIN EN1717

Engineering standards: CE
