CONBOX FIT raw-assembling set for concealed showers, with thermostat, DN15 conr2112
CONBOX FIT raw-assembling set for concealed shower, thermostat, DN15
Raw-assembling set for mechanical and electronic shower equipment based on the adaptive multifunctional water path CONGENIAL FIT with thermostat, designed as flush-mounted shower in nominal width DN15. Application area in new construction and renovation in public, semi-public and commercial sanitary facilities.
Consisting of:

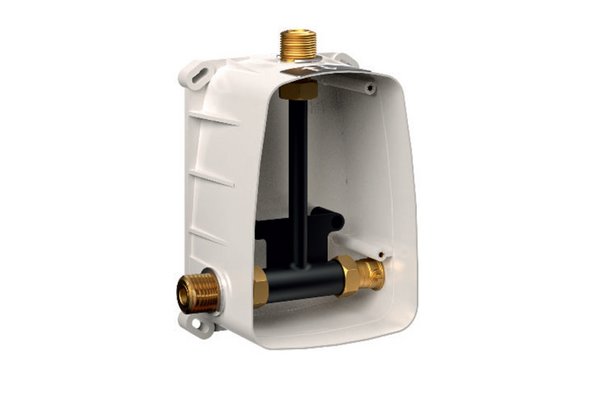

• Concealed shower box CONBOX FIT

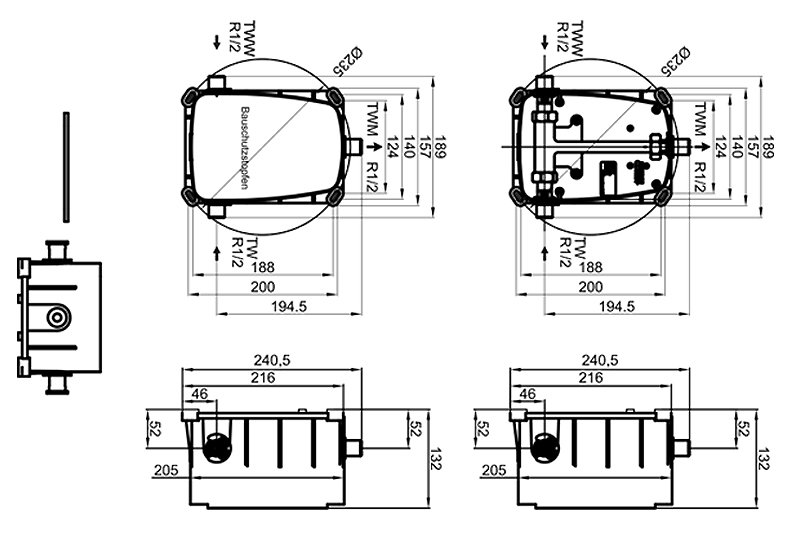

• Recessed enclosure: ABS, dimensions (WxHxD minimum): 157x216x127 mm, self-supporti
• Fastener brackets for mounting material with max. diameter 6 mm
• Condensate drain slope, sealed and sound-insulated brass entrances and exits
• Inlet with shut-off valves R 1/2
• Detachable connecting coupling for exchange the flushing piece on the water path
• Mounting depth with final assembly set: 85-112 mm
• Flushing piece: ABS, waterless and hygienically, tested for leakage
• Protective plug: cardboard
• Gasket ring: PE, dimensions (WxH) 400x400 mm, with expansion zone
• Connection to cold and hot water
