Raw assembly set, without thermostat, DN15 conr0111

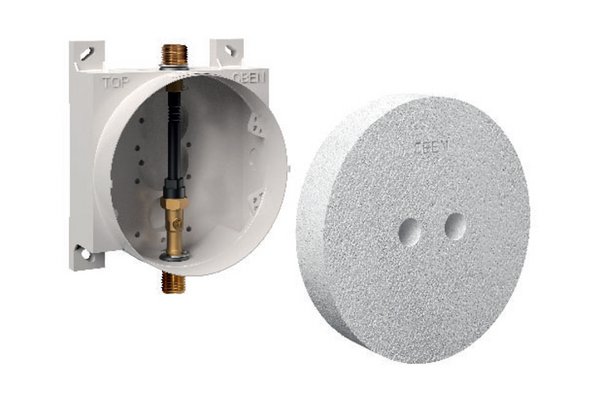

CONBOX raw-assembling set for concealed shower, DN15
Raw-assembling set for mechanical and electronic shower equipment, designed as flush-mounted shower without thermostat in nominal width DN15. Application area in new construction and renovation in public, semi-public and commercial sanitary facilities.
Consisting of:
• Concealed shower box CONBOX
• Recessed enclosure: ABS, dimensions (WxHxD minimum) 232x9272x6 mm, self-supporting
• Fastener brackets for mounting material with max. diameter 8 mm
• Wall outlet diameter 230 mm can be cut to length of tile front edge, condensate drain slope
• Sealed and sound-insulated brass entrances and exi
• Inlet with shut-off valves R 1/2
• Mounting depth with final assembly set: 96-110 mm
• Flushing piece: ABS, waterless and hygienically, tested for leakage
• Protective plug: EPS, dimension (ØxD) 226x40 mm
• Gasket ring: PE, dimensions (WxH) 450x450 mm, with expansion zone
• Connection to cold and hot water
