CONTI+ CONBASE Concealed shower Rectangular stainless steel, electric, Piezo Probes, Mains operation, No temp. mixing, Hygienic flushing, DN15, FinishedAssembly Set CONE2115133200
CONBASE concealed shower, stainless steel, angular, piezo switch, DN15 - final assembly kit
Final assembly kit for electronic shower, device designed as concealed shower in nominal diameter DN15. Without mixing device for connection to cold ore premixed water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

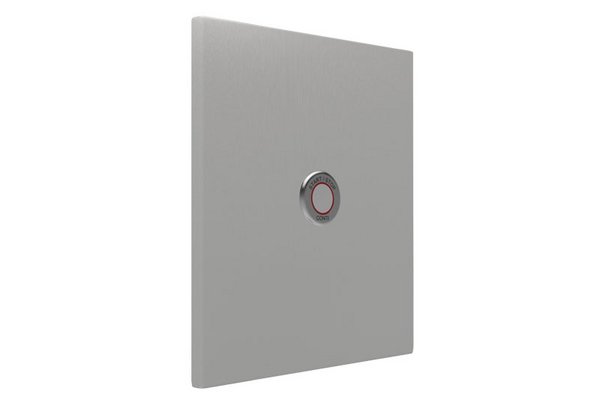

• Concealed shower final assembly kit with angular cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust quadruple lock, multi sealing system with drainage system for condensation
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Water path, in sliding sleeve technology, for tension-free installation of the solenoid valve 6 V/DC ROBUST, bistable, DN15
• Multifunction tool for maintenance work
• Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring red, rosette chrome plated
• Control via service APP possible
Mains:
Power supply over 12 V/DC power supply for surface-mounted version in installation box or for DIN top-hat rail mounting
Execution options:
Hygienic flush (mains):
Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by programming via the piezo switch or the Service APP per shower.
Notice:
When using the Service APP, the BLE Converter must be ordered separately.
Connection voltage (mains): 12-28 V/DC
Operating pressure: 1.5 - 5.0 bar
Flow rate DN15: 0.15 l/s (flow rate controller)
Water temperature in standard mode (max.): 70 °C
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse setting range: 12, 24 or 72 h, or can be disabled - all via piezo pushbutton setting; other sanitary rinse intervals can be set via the Service APP
Sanitary rinse factory setting: 12 h after the water flow was last triggered, 30 s water running time

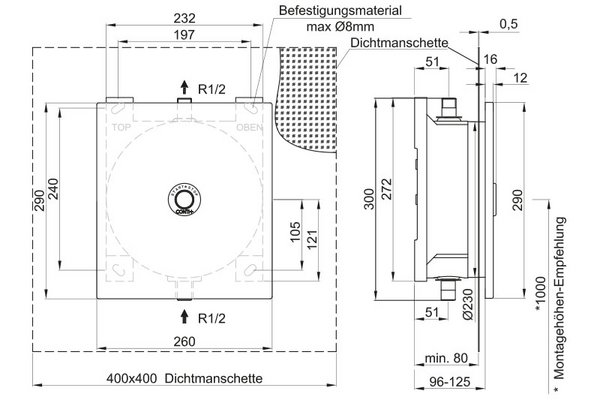

Angular dimensions (WxHxD): 260 x 290 x 12 mm
Electronic IP protection: IP68
