CONTI+ CONBASE Concealed shower Round stainless steel, electric, Piezo Probes, Battery operation, No temp. mixing, Hygienic flushing, DN15, FinishedAssembly Set CONE2110173100
CONBASE concealed shower, stainless steel, round, piezo switch, DN15 - final assembly kit
Final assembly kit for electronic shower, device designed as concealed shower in nominal diameter DN15. Without mixing device for connection to cold ore premixed water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

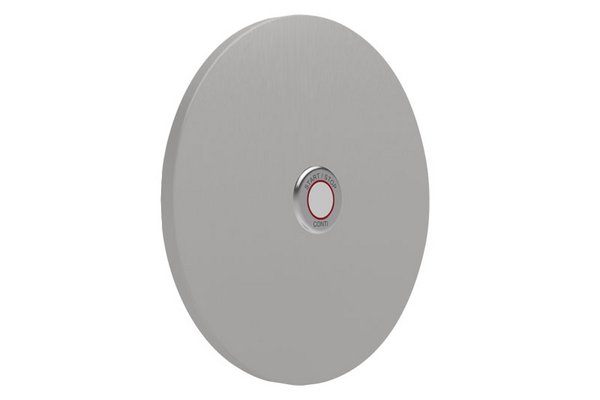

• Concealed shower final assembly kit with round cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust quadruple lock, multi sealing system with drainage system for condensation
• Support frame for cover plate: ABS with EPDM lip sealing
• Water path, in sliding sleeve technology, for tension-free installation of the solenoid valve 6 V/DC ROBUST, bistable, DN15
• Multifunction tool for maintenance work
• Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring red, rosette chrome plated
• Control via service APP possible
Battery:
6 V Lithium waterproof encased, lifetime up to 4 years
Execution options:
Hygienic flush (battery):
Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by programming via the piezo switch or the Service APP per shower.
Notice:
When using the Service APP, the BLE Converter must be ordered separately.
Connection voltage (battery): 6 V/DC
Operating pressure: 1.5 - 5.0 bar
Flow rate DN15: 0.15 l/s (flow rate controller)
Water temperature in standard mode (max.): 70 °C
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse setting range: 12, 24 or 72 h, or can be disabled - all via piezo pushbutton setting; other sanitary rinse intervals can be set via the Service APP
Sanitary rinse factory setting: 12 h after the water flow was last triggered, 30 s water running time

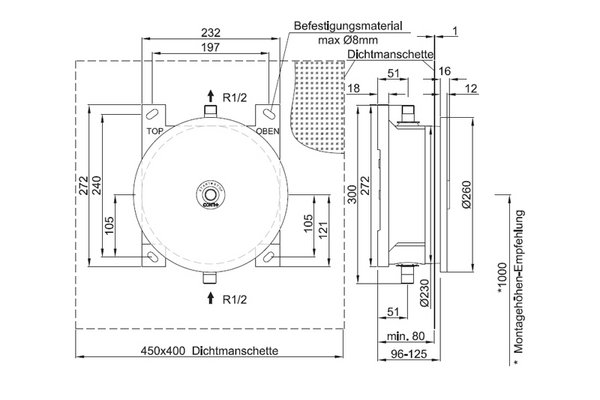

Round dimensions (ØxD): 260 x 12 mm
Electronic IP protection: IP68
