CONBASE concealed shower faucet stainless steel, without cleaning stop, round cover plate, without TD, hygienic flushing, piezo push button, Mains operation, stainless-steel, thermostat, DN15 cone2110173200
CONBASE concealed shower, stainless steel, round, piezo switch, DN15 - final assembly kit
Final assembly kit for electronic shower, device designed as concealed shower in nominal diameter DN15. Without mixing device for connection to cold ore premixed water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

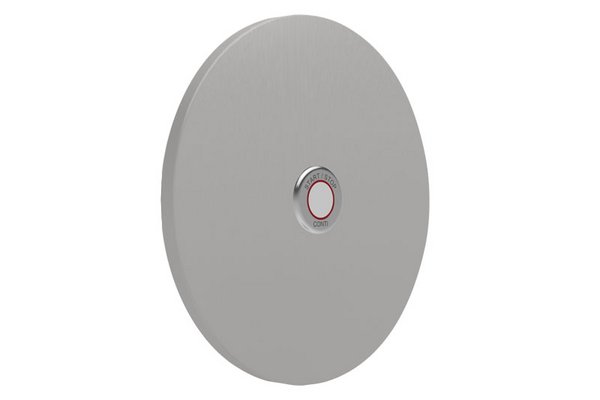

• Concealed shower final assembly kit with round cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust quadruple lock, multi sealing system with drainage system for condensation
• Support frame for cover plate: ABS with EPDM lip sealing
• Water path, in sliding sleeve technology, for tension-free installation of the solenoid valve 6 V/DC ROBUST, bistable, DN15
• Multifunction tool for maintenance work
• Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring red, rosette chrome plated
• Control via service APP possible
Mains:
Power supply over 12 V/DC power supply for surface-mounted version in installation box or for DIN top-hat rail mounting
Execution options:
Hygienic flush (mains):
Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by programming via the piezo switch or the Service APP per shower.
Notice:
When using the Service APP, the BLE Converter must be ordered separately.
Operating voltage (mains): 12 V/DC
Operating pressure: 1,5 – 5,0 bar
Water temp. standard operation (max.): 70 °C
Flow rate DN15: 0,15 l/s (flow rate regulator)
Water flow time setting range: 3-180 s
Water flow time factory setting: 30 s
Hygienic flush setting range: 12, 24 or 72 h, can be deactivated via setting on piezo switch, other hygienic flush intervals can be set via Service APP
Hygienic flush factory setting: 12 h after last water flow activation, 30 s water flow time
Electronic protection type: IP68

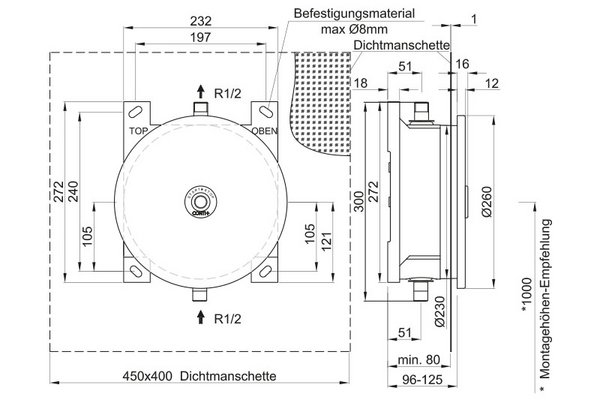

Dimension (ØxD): 260x12 mm
