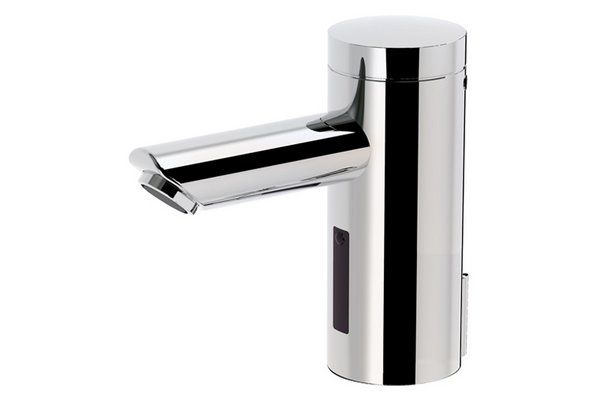

CONTI+ lino washbasin faucet electric, Infrared sensor, VARIOconnect, No temp. mixing, Chrom, - CNX / APP - 120.056.11
lino lavatory faucet L20, with IR sensor, without temperature-mixing (for cold or premixed water), chromed
Touchless, electronically controlled lavatory faucet:
• For connection to cold or premixed water
• Modular single-piece design without separate installation box, sturdy brass housing, chromed
• Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator
• Infrared sensors with automatic setting feature, microprocessor
• Follow-up time and sensor sensitivity adjustable with function key
• Cold water supply connection with flexible high-pressure hose, built-in filter
• 12, 24 or 48-hour hygienic flush activatable with function key
• Compatible with CNX and Service APP: control of stored operational data, settings and control functions
• Compatible with Service APP: Control of stored operational data, settings and control functions
Optional:
Extension kit for countertop basins (see accessories)
Notice:
When integrated into the CNX Water Management System, the CNX Converter 6 V must be ordered separately.
When using the Service APP, the BLE Converter must be ordered separately.
VARIOconnect: For single and multiple power supply and data connection
Operating pressure: 0.3 - 10.0 bar
Flow rate: Approx. 6 l/min (3 bar)
Water temperature (max.): 80 °C
Pressure hose: 350 mm
Angle valve connections: G 3/8
Strainers: 0.5 mm mesh width
Sensor sensitivity: Continuous automatic self-calibration
Water run-on time: Preset to 1 s (adjustable to 0 - 10 s with function key)
Continuous on function and sanitary rinse time: Preset to 2 min (can be adjusted from 0.5 to 20 min with function key)
Standards: DIN EN 200; noise class I; PA-IX 28707 / IO; CE
Aerator: Economy aerator, cascade (self-cleaning)

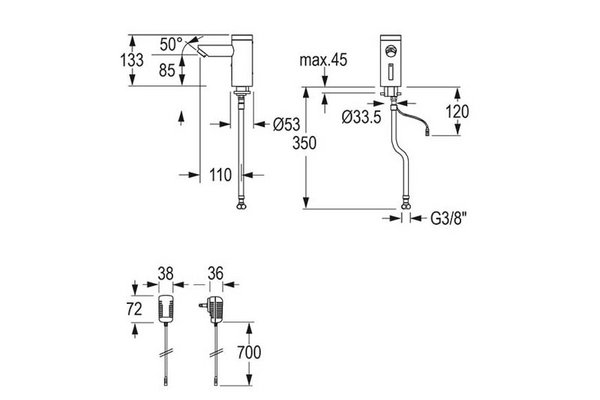

Projection: 110 mm
Spout height: 85 mm
Outlet: fixed
Click: Recessed function button - without additional functions
