iQ A50 Concealed wall-mounted faucet, hygienic flushing, stainless steel matt, IR-sensor, Click, battery, stainless-steel, no temp. mixing 100.332.00

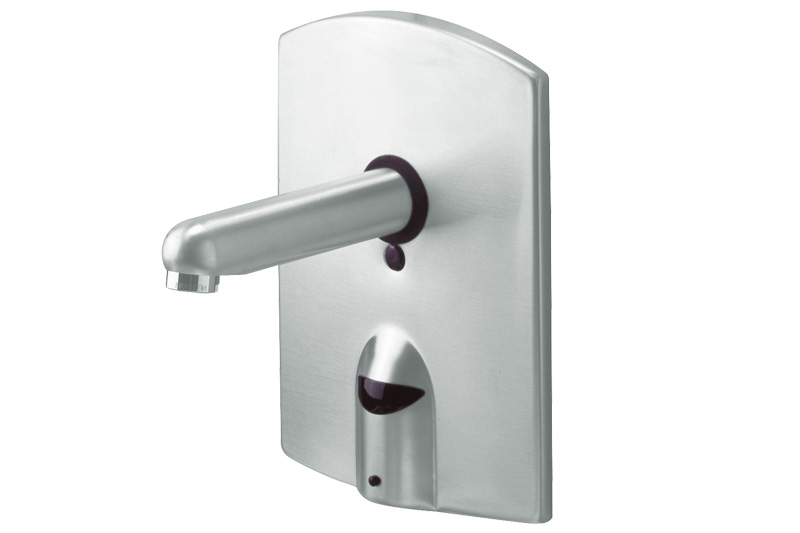

iQ concealed wall-mounted faucet A50, with IR sensor, without temperature-mixing, stainless-steel - final installation set
Touchless, electronically controlled faucet for flush mounting:
• For cold water or premixed water
• Sturdy version, brushed stainless-steel front cover and spout
• Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator
• Dual infrared sensors (with automatic setting feature), microprocessor
• Follow-up time and sensor sensitivity adjustable with function key
• Continuous water flow with Click adjustable
• 12, 24 or 48-hour hygienic flush activatable with function key
• Easy installation in combination with shell set U3A (not included)
• Compatible with Service APP: control of stored operational data, settings and control functions
Notice:
Service APP only available in conjunction with BLE Converter - no permanent evaluation option.
When using the Service APP, the BLE Converter must be ordered separately.
Battery: 6 V Lithium CRP2 - commercial; life time up to 4 years
Operating pressure: 0,3 −10 bar
Water temperature (max.): 80 °C
Flow rate (approx.): 6 l/min / 1,6 gpm (3 bar)
Follow-up time: 1 s pre-set (adjustable with function key 0-10 s)
Continuous water flow and hygienic flush time: 2 min pre-set (adjustable with function key 0,5-20 min)
Sensor sensitivity: Automatic self-adapting sensor technology
Built-in filters: 0,5 mm mesh size
Aerator: Economic aerator, CASCADE (self-cleaning)

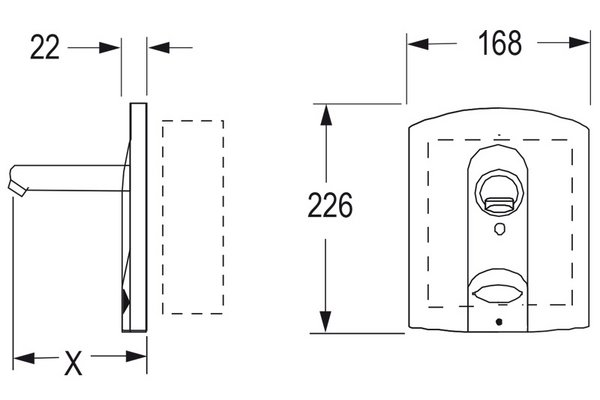

Spout (x): 220 mm
Click: Recessed function key - without additional functions
Engineering standards: DIN EN 200; Noise category I; CE
