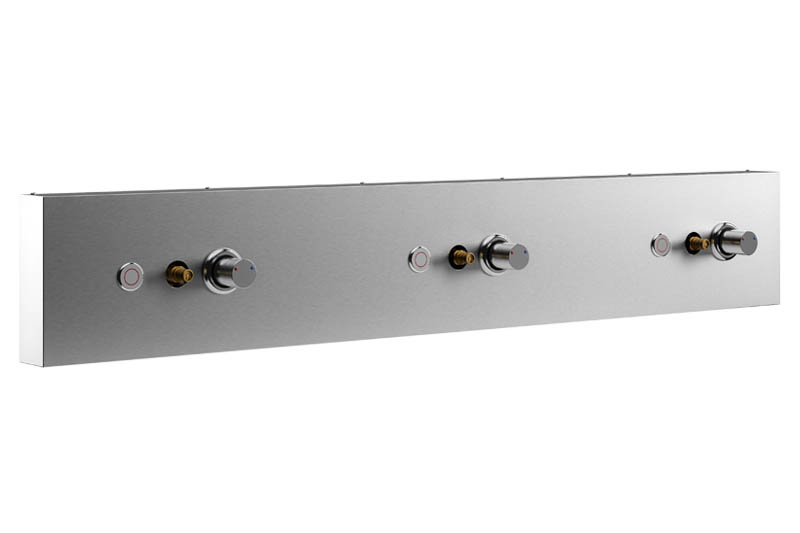

CONTI+ CONGENIAL Row washing area stainless steel, electric, 3 washing places, Piezo Probes, CNX operation, Thermostat, Hygienic flushing, DN15 CONE7313201336

CONGENIAL triple faucet assembly kit for wash troughs, with piezo switch, with thermostat, stainless steel

Multiple washing system with three electronic wall-mounted faucets for wash troughs, device designed in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.
• Multiple washing system with rectangular cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Corrosion-resistant steel connecting lines
• Upgrade and retrofitting functions
• Water path: dezincification restistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid chromed brass, with safety stop
• Choice of temperature and setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• All functional parts can be disassembled from the front during maintenance work without removing the water path
• Electronic operation via piezo switch with start/stop function, piezo switch: colour ring red, rosette chromed

Mains (CNX):
Power supply over 30 V/DC power supply in the control panels 64 and 150

Execution options:
CNX Water Management System:
Integration of the faucet into the software-controlled CNX Water Management System for the automatic depiction of hygiene, system and safety functions of electronic showers, lavatory faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and device groups. Tamper-proof documentation of all operating, action and function messages.
Water flow time:
The water flow time of the faucet function can be set and disabled for electronic faucets, integrated into the CNX Water Management System or via Service APP through the software parameter settings per faucet or faucet group..
Hygienic flush (CNX):
The hygienic flush can be set and disabled for electronic faucets, integrated into the CNX Water Management System or via Service APP, by the software parameter settings per faucet or faucet group as interval or calendar function.
Cleaning stop CNX:
The operation stop (cleaning stop), interruption of the faucet function can be set in electronic faucets, integrated into the CNX Water Management System or via Service APP, by the software parameter settings per faucet or faucet group as a calendar function.

Connection voltage (CNX): 30 V/DC

Operating pressure: 1.5 - 5.0 bar
Flow rate DN15: 0.15 l/s (flow rate controller)
Water temperature in standard mode (max.): 70 °C
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse setting range: 12, 24 or 72 h, or can be disabled - all via piezo pushbutton setting; other sanitary rinse intervals can be set via the Service APP
Sanitary rinse factory setting: 12 h after the water flow was last triggered, 30 s water running time

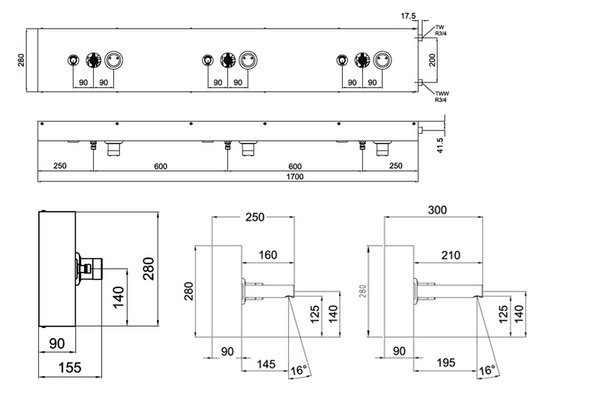

Dimensions (WxHxD): 1700 x 280 x 90 mm
Distance between washbasin faucets: 600 mm
Electronic IP protection: IP68
Projection: 235 mm, 285 mm (not included in the scope of delivery)
Outlet: fixed
