CONTI+ CONPRIMUS Shower panel electric, E-Control - Knob for mixing and start/stop function, CNX operation, Thermostat-E, KWH - Cold Water Flush, RAL-Classic according to customer requirements, DN15 CONE1171219568

CONPRIMUS shower panel, RAL-colour, thermostat-E, E-control, DN15

Shower panel with electronically controlled mixing device, including scald protection, for wall mounting. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

• Pre-installed electronic mixing unit thermostat-E
• Proportional valve mixing unit at shower head height
• Electronic control unit E-control, turn/push button for mixing and start/stop function
• Electronic scald protection
• Temperature adjustment with LED display
• Non-linear temperature adjustment
• Adjustable shower start temperature
• Time-adjustable memory temperature when showering stops
• Pre-equipped for shower heads with plug-in connection
• Electronic hygiene rinsing (mixed water temperature)
• Electronic hygiene flushing (cold water side) via CNX
• Electronic thermal disinfection (hot water side) via CNX
• Integration into the CNX Water Management System
• Connection from above or behind
• Incl. mounting material
Mains supply (CNX):
Power supply via 30 V/DC power supply unit in the Control units 64 and 150 and additional 24 V/DC auxiliary power supply

Execution options:
Cold water flush: (Available with software update)
Cold water flush can be set and deactivated per shower or shower group (CNX) as an interval or calendar function using the parameter settings, either integrated in the CNX Water Management System.
CNX Water Management System:
Integration of the shower into the software-controlled Water Management System for the automatic depiction of hygiene, system and safety functions of electronic showers, lavatory faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and device groups. Tamper-proof documentation of all operating, action and function messages.
Water flow times:
The water running times of the shower function can be set - via piezo push-button (E-control) or integrated into the CNX Water Management System - by the parameter settings per shower or shower fitting group (CNX).
Hygienic flush:
The hygiene flush can be carried out by programming via piezo push-button (E-control). Integrated into the CNX Water Management System, the hygiene flush can be set as an interval or calendar function and deactivated by parameter settings per shower or shower fittings group (CNX).
Thermal disinfection:
Thermal disinfection can be set as a calendar function for each shower or shower group (CNX) - integrated in the CNX Water Management System - using the parameter settings for each shower or shower group (CNX).
Cleaning stop:
The operating stop (cleaning stop), interruption of the shower function, can be set as a calendar function per shower or shower group (CNX) through the parameter settings - integrated in the CNX Water Management System.

Notice:
Shower head must be ordered separately, shown here as an example with CONHEAD rain shower head SHORTY

Connection voltage (CNX): 30 V/DC, also 24 V/DC

Operating pressure: 2.5 - 5.0 bar
Flow rate DN15: 0.15 l/s (flow rate controller)
Flow rate for thermal disinfection DN15: 0.05 l/s
Water temperature in standard mode (max.): 70 °C
Water temperature for thermal disinfection: Briefly 80 °C for thermal disinfection
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse setting range: Disabled at the factory; can be set to 24, 48 or 72 h via piezo pushbutton or Service APP
Preset temperatures: Standby temperature when the piezo button is triggered 38 °C (can be adjusted from 100 % cold to max. 43 °C (temperature range) by turning the E-Control knob).
Anti-scald protection: If the cold water pipe fails, the water flow is stopped when it reaches 48 °C (factory setting - adjustable via Service APP and CNX; observe maximum water temperature)
Memory temperature setting: After the shower time has ended (or the shower has been stopped by pressing the piezo pushbutton again), the set temperature is saved for 30 s

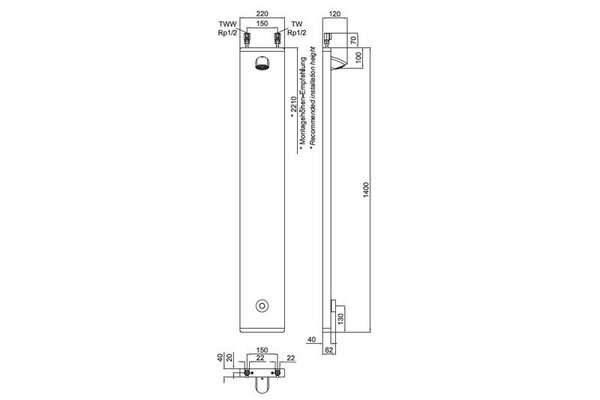

Dimensions (WxHxD): 220 x 1400 x 40 mm
Material: stainless steel
Electronic IP protection: IP68
