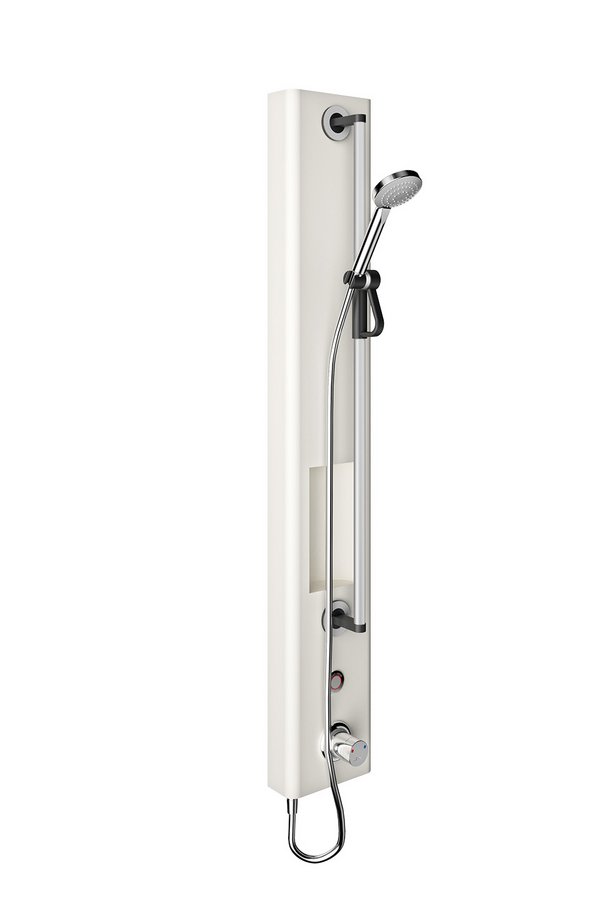

CONGENIAL shower panel AVW, without cleaning stop, with soap tray, without TD, hygienic flushing, piezo push button, Mains operation, thermostat, DN15, for hand shower CONE0232211200

CONGENIAL shower panel, AVW, thermostat, piezo switch, DN15

With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities. mixing device for connection to cold and hot water. Application in new

• AVW shower panel. Model with mounting frame for fixing the water path, including mounting material
• Cover 2K-acrylic composite material, break-proof and impact resistant, very easy to clean
• Mounting frame made of stainless steel 1.4301
• Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid, chromed brass, with safety stop
• Choice of temperature setting range
• Integrated check valve in the bypass check valve and strainer cartridges for water inlets
• All functional parts can be disassembled from the front during maintenance work without removing the valve body
• Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring red, rosette chromed
• The water flow time of the shower function is easily adjustable in electronic showers
• Interval hygiene flush to prevent stagnation

Mains:
Power supply over 12 V/DC power supply for surface-mounted version in installation box or for DIN top-hat rail mounting

Execution options:
Cover version:
With seamlessly integrated soap dish.
Hygienic flush (mains):
Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by programming via the piezo switch or the Service APP per shower.

Notice:
When using the Service APP, the BLE Converter must be ordered separately.

Operating voltage (mains): 12 V/DC
Operating pressure: 1,5 – 5,0 bar
Water temp. standard operation (max.): 70 °C
Flow rate DN15: 0,15 l/s (flow rate regulator)
Water flow time setting range: 3 – 180 s
Water flow time factory setting: 30 s
Hygienic flush setting range: 12, 24 or 72 h, can be deactivated via setting on piezo switch, other hygienic flush intervals can be set via Service APP
Hygienic flush factory setting: 12 h after last water flow activation, 30 s water flow time
Electronic protection type: IP68

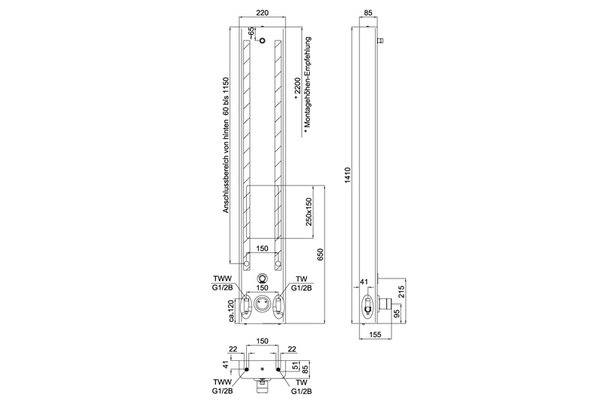

Dimensions (WxHxD): 220x1400x80 mm
