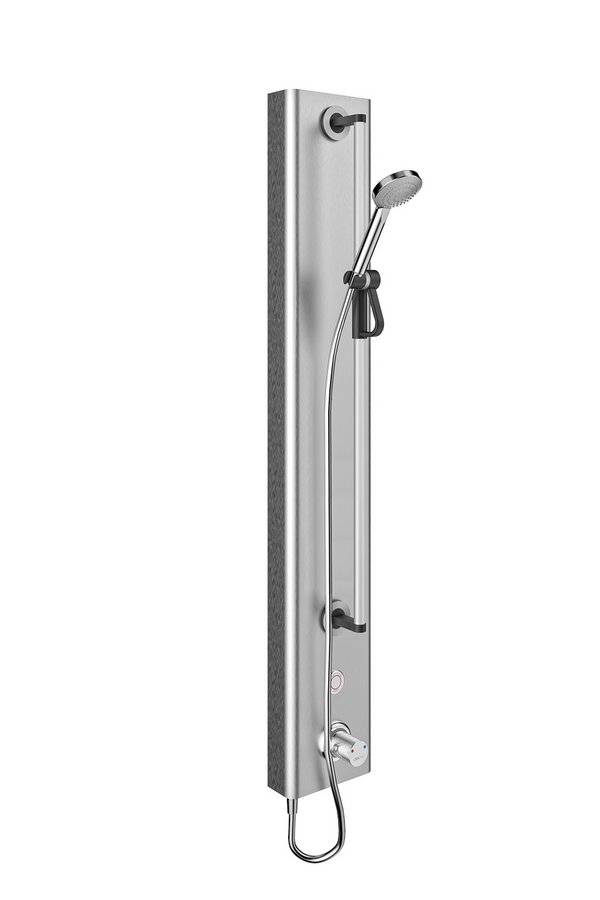

CONGENIAL shower panel stainless steel, cleaning stop CNX, without soap tray, therm. disinfect. CNX, hygienic flushing via CNX, piezo push button, CNX Bus 30V/DC, thermostat, DN15 cone0211211360

CONGENIAL shower panel, stainless steel, thermostat, piezo switch, DN15

With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities. mixing device for connection to cold and hot water. Application in new

• Stainless steel shower panel. Model with mounting frame for fixing the water path, including mounting material steel shower panel. Model with mounting frame for fixing the water path, including mounting material
• Cover and mounting frame made of stainless steel 1.4301
• All visible surfaces made of brushed stainless steel
• Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid, chromed brass, with safety stop
• Choice of temperature setting range
• Integrated check valve in the bypass check valve and strainer cartridges for water inlets
• All functional parts can be disassembled from the front during maintenance work without removing the valve body
• Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring red, rosette chromed
• The water flow time of the shower function is easily adjustable in electronic showers
• Interval hygiene flush to prevent stagnation

Mains (CNX):
Power supply over 30 V/DC power supply in the control panels 64 and 150

Execution options:
Cover version:
Without seamlessly integrated soap dish.
CNX Water Management System:
Integration of the shower into the software-controlled Water Management System for the automatic depiction of hygiene, system and safety functions of electronic showers, lavatory faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and device groups. Tamper-proof documentation of all operating, action and function messages.
Water flow time (CNX):
The water flow time of the shower function can be set and disabled for electronic showers, integrated into the CNX Water Management System, through the software parameter settings per shower or shower group.
Hygienic flush (CNX):
The hygienic flush can be set and disabled for electronic showers, integrated into the CNX Water Management System, by the software parameter settings per shower or shower group as interval or calendar function.
Thermal disinfection CNX:
The thermal disinfection can be set as a calendar function in electronic showers, integrated into the CNX Water Management System, by the software parameter settings per shower group.
Cleaning stop CNX:
The operation stop (cleaning stop), interruption of the shower function, can be set in electronic showers, integrated into the CNX Water Management System, by the software parameter settings per shower or shower group as a calendar function.

Notice:
For the water path CNX with thermal disinfection, the temperature sensor is already included in the scope of delivery.

Operating voltage (CNX): 30 V/DC
Operating pressure: 1,5 – 5,0 bar
Water temp. standard operation (max.): 70 °C
Water temp. thermal disinfection: Short-term for therm. disinfection 80 °C
Flow rate DN15: 0,15 l/s (flow rate regulator)
Flow rate during thermal disinfection DN15: 0,05 l/s (flow rate regulator)
Water flow time setting range: 3 – 180 s
Water flow time factory setting: 30 s
Hygienic flush setting range: 12, 24 or 72 h, can be deactivated via setting on piezo switch, other hygienic flush intervals can be set via Service APP
Hygienic flush factory setting: 12 h after last water flow activation, 30 s water flow time
Electronic protection type: IP68

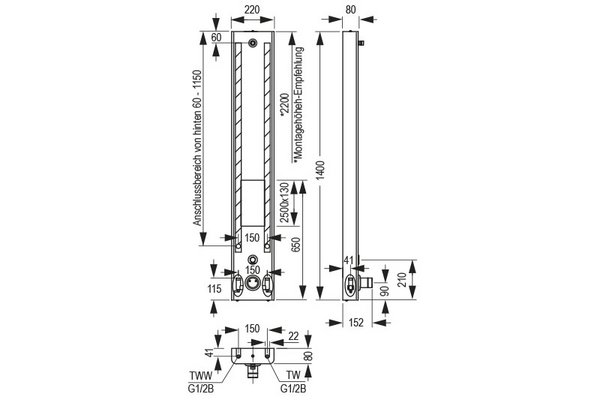

Dimensions (WxHxD): 220x1400x80 mm
