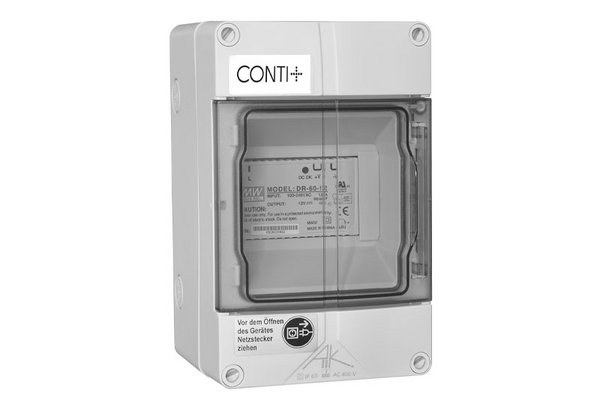

Power supply unit 12 V/DC 4.5 A, mechanical TD showers, in installation box, surface-mounted cono510000
Power supply unit 12 V/DC / 4.5 A, mechanical TD showers, in installation box, surface-mounted
For supplying power to a maximum of 20 thermal disinfection sets for mechanical showers. Wall-mounted distributor for wall installation, wired ready for connection, connection via pre-assembled 2 m connection cable with Schuko plug.
The electrical wiring may only be carried out by a qualified electrician in accordance with DIN VDE 105-100.
Technical data
Operating voltage: 230 V / AC
Output voltage: 12 V ± 1% DC
Output current: 0 – 4,5 A
Output power: 54 W
Protection class: II
IP protection: IP65
Dimensions (WxHxD): 125x200x122 mm
