Central control unit CNX 64 with touchscreen cono144918
Central control unit CNX 64 with touchscreen
Power supply and control for max. 64 CNX devices, including touchscreen as central operating unit, with integrated web server, browser address for integration, adjustment, control, monitoring and logging of all devices. Data transmission via LAN and WLAN, wired ready for connection, connection cable with Schuko plug, suitable for wall mounting. Generous variable line topology up to 350 m in flexible line, star or tree structure
Feature Overview:
• Integrating, managing, operating, querying, setting and monitoring the entire system, group or individual fittings
• Export function of asset and status logs
• Water flow time: adjustment for normal operation, hygienic flush and thermal disinfection
• Hygienic flush: choice, setting and combination options (manual, usage and calendar-dependent)
• Thermal disinfection: automatic, variable execution, with temperature logging in PDF format with optional temperature sensors
• Cleaning shutdown: manual or optional via external contact
• Operating and fault messages stored in PDF format
• Voltage supply unit
Consisting of:

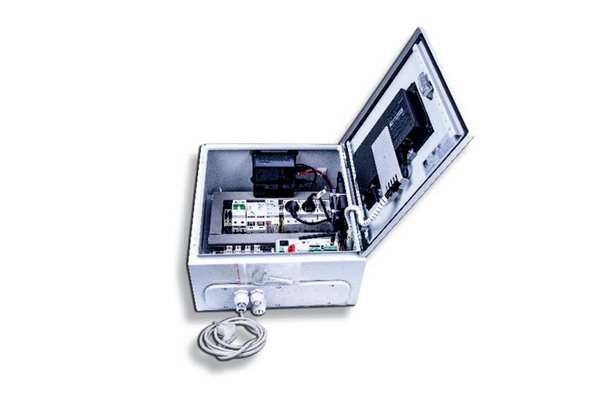

• Housing: made of plastic with door, RAL 7035
• CNX controller with proprietary robust bus system, with LAN connection as well as WLAN antenna, SD card for lifelong data backup, potential-free inputs for: Start of the thermal flush for disinfection (TD), TD successful message, collective error message, inputs for TD abort, deactivation shower operation and acknowledgment collective error message
• Touchscreen: with menu-driven innovative user interface, integrated clock- and calendar function
• Touchscreen: integration, administration, operation, querying, setting and monitoring of the entire system, groups or individual devices locally via touch screen or Internet web browser, with user logon, export function of system and status logs
The electrical wiring may only be carried out by a qualified electrician
Input voltage: 230 V / 50 Hz
Output voltage: 26 – 28 V/DC
Current consumption: 2 A
Power consumption max: 0,1 kW
Communication: 1 x USB, 1 x Ethernet, web server for a web client
Protection class: I
Protection type: IP65

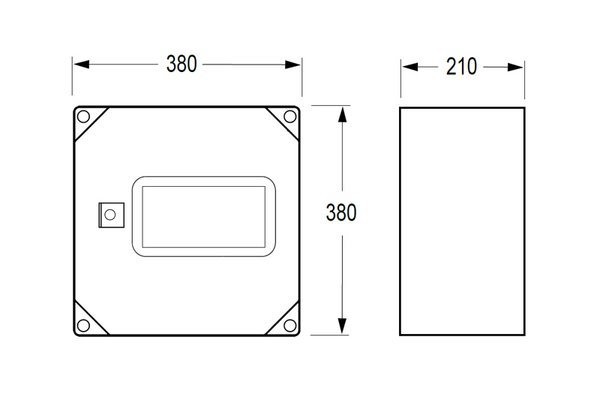

Dimensions (WxHxD): 380x380x210 mm
