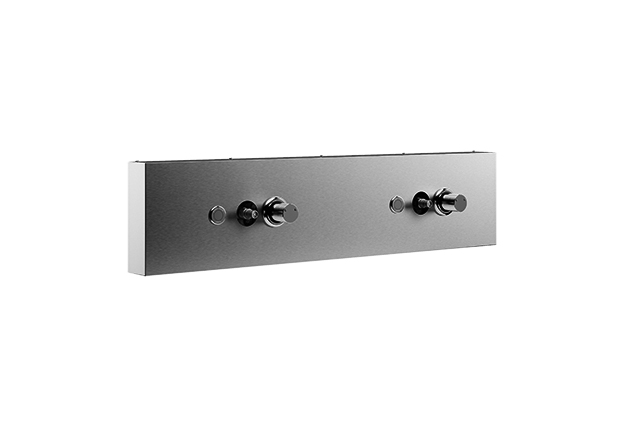

CONTI+ CONGENIAL Row washing area stainless steel, electric, 2 washing places, Piezo Probes, Mains operation, Thermostat, Hygienic flushing, DN15 CONE7312201200

CONGENIAL double faucet assembly kit for wash troughs, with piezo switch, with thermostat, stainless steel

Multiple washing system with two electronic wall-mounted faucets for wash troughs, device designed in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.
• Multiple washing system with rectangular cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification restistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid chromed brass, with safety stop
• Choice of temperature and setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• All functional parts can be disassembled from the front during maintenance work without removing the water path
• Electronic operation via piezo switch with start/stop function, piezo switch: colour ring red, rosette chromed

Mains:
Power supply over 12 V/DC power supply for surface-mounted version in installation box of for DIN top-hat rail mounting

Execution options:
Hygienic flush (mains):
Hygienic flush (electronic): the hygienic flush of an electronic faucet can be carried out by programming via the piezo switch or the Service APP per faucet.

Connection voltage (mains): 12-28 V/DC

Operating pressure: 1.5 - 5.0 bar
Flow rate DN15: 0.15 l/s (flow rate controller)
Water temperature in standard mode (max.): 70 °C
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse setting range: 12, 24 or 72 h, or can be disabled - all via piezo pushbutton setting; other sanitary rinse intervals can be set via the Service APP
Sanitary rinse factory setting: 12 h after the water flow was last triggered, 30 s water running time

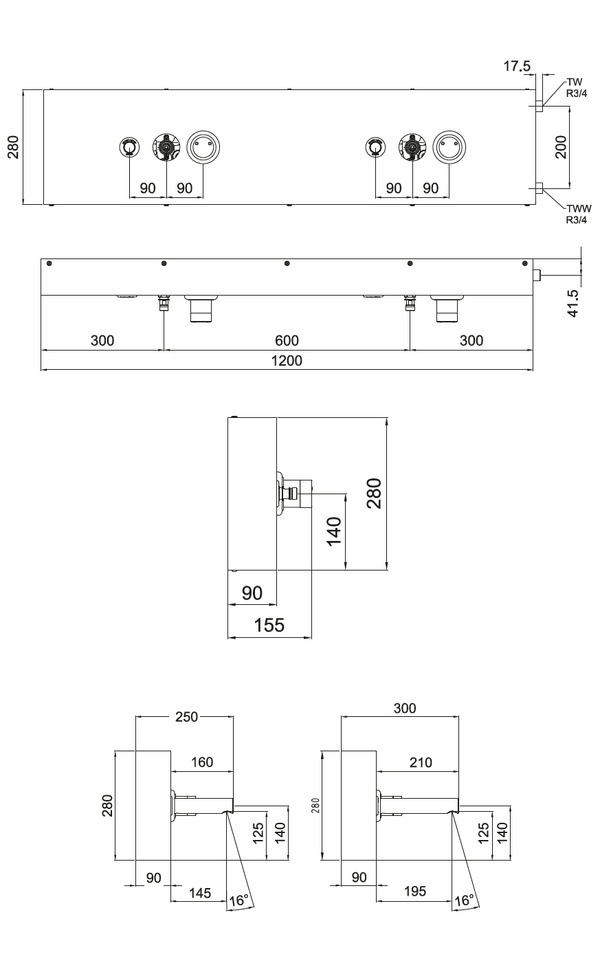

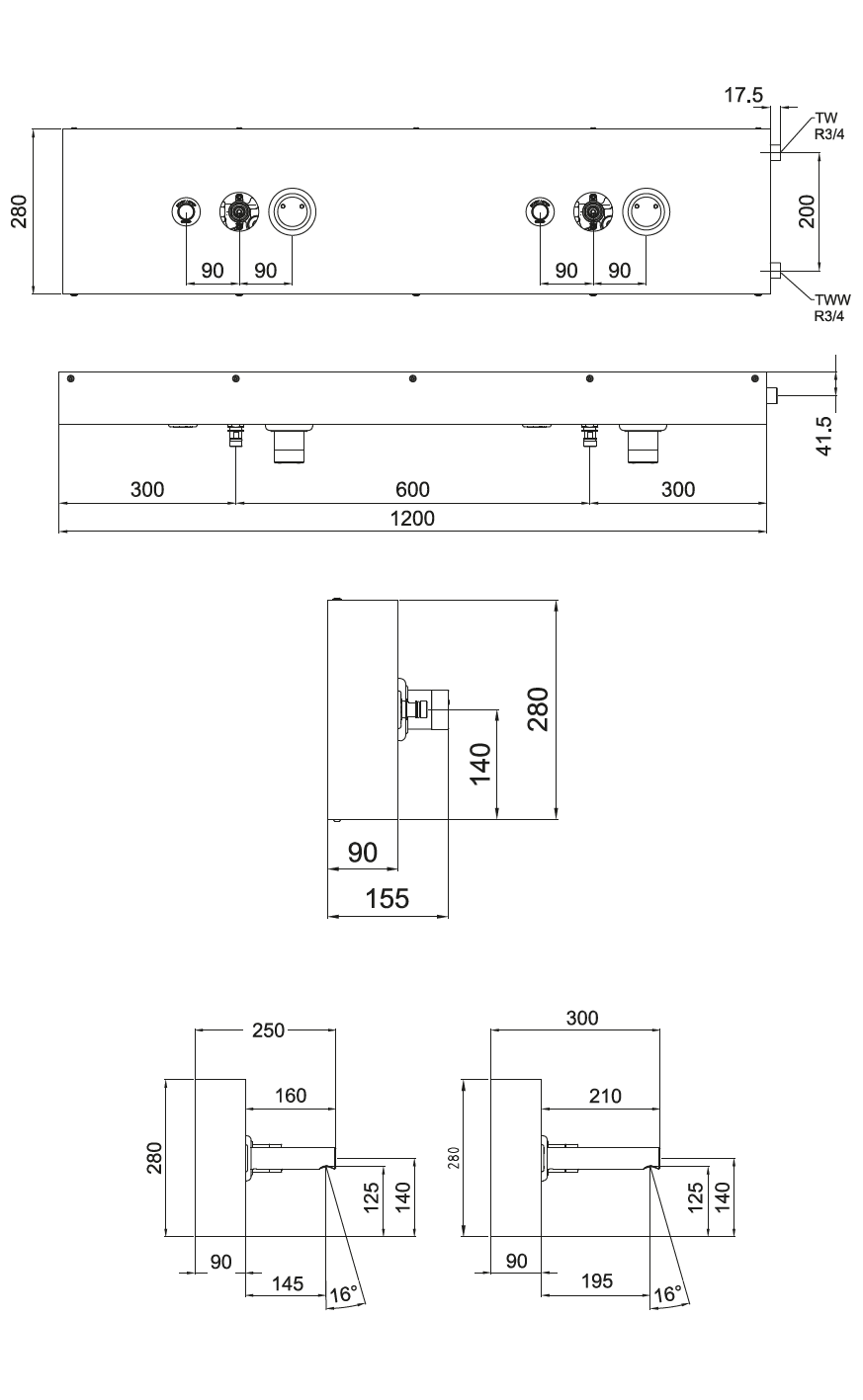

Dimensions (WxHxD): 1200 x 280 x 90 mm
Distance between washbasin faucets: 600 mm
Electronic IP protection: IP68
Projection: 235 mm, 285 mm (not included in the scope of delivery)
Outlet: fixed

CONO820170	CONTI+ Outlet complete incl. aerator, 170 mm, for CONGENIAL FIT wall-mounted faucet (Outlet 170 mm chromed)
CONO820220	CONTI+ Outlet complete incl. aerator, 220 mm, for CONGENIAL FIT wall-mounted faucet (Outlet 220 mm chromed)

0590360	CONTI+ Deflector ring 61 x 49,5 x 7,5 mm (Deflector ring thermostatic handle Ø 61 x Ø 49,5 x 7,5 mm)
0615620	CONTI+ Control electronics Base 3 Ports, Battery and mains version, 6 VDC (Control electronics – basic (3 Connections), battery, mains, 6 V)
0670860	CONTI+ Flow rate regulator Bypass, 3.0 liters (Flow regulator 3.0 litres bypass)
0950642	CONTI+ Backflow Preventer Cartridge Bypass, Red (Backflow preventer cartridge bypass red)
0951300	CONTI+ Piezo Probes Set with color rings (red/blue), Gasket, reducer and nut (Set piezo switch with color rings (red/blue), seal, reducing washer and nut)
0962251	CONTI+ Backflow Preventer Cartridge white, with sieve (Backflow preventer cartridge white with strainer)
0962490	CONTI+ Stuff Solenoid valve mount 2, for bypass section, thermal disinfection (Plug Solenoid valve seat 2 (bypass section thermal disinfection))
CONO250000	CONTI+ Transverter 12-28 VAC/VDC -> VDC (Transverter 12-28 VAC/DC / 6 VDC)
CONO320000	CONTI+ Solenoid valve cartridge 6 V (Solenoid valve cartridge 6V/DC, 3W, bistable)
CONO570000	CONTI+ Connection Distributor for mains supply (Anschlussverteiler für Netzversorgung)
CONO820170	CONTI+ Outlet complete incl. aerator, 170 mm, for CONGENIAL FIT wall-mounted faucet (Outlet 170 mm chromed)
CONO820220	CONTI+ Outlet complete incl. aerator, 220 mm, for CONGENIAL FIT wall-mounted faucet (Outlet 220 mm chromed)
CONZ0500000	CONTI+ Fiber seals for arrivals and departures, for CONTI+ CONGENIAL / CONGENIAL FIT / CONFRESH (Fiber seals inlets and outlets)
CONZ0600000	CONTI+ Temperature stop rings Set with handle mount, washer and screw, for CONTI+ CONFRESH / CONGENIAL / CONGENIAL FIT / CONSMART / CONFRESH, red and blue (Set temperature stop rings red and blue)
CONZ0920431	CONTI+ Thermostat handle Set with temperature stop rings (blue and red), handle mount, washer and screw, for CONTI+ CONGENIAL / CONGENIAL FIT / CONFRESH, Chrom (Set thermostatic handle CONGENIAL showers (chrome-plated))
CONZ1920431	CONTI+ Thermostat handle Set with temperature stop rings (blue and red), handle mount, washer and screw, for CONTI+ CONGENIAL / CONGENIAL FIT / CONFRESH, stainless steel (Set thermostatic handle CONGENIAL showers (stainless steel))
CONZ3001201	CONTI+ Thermostatic cartridge Set for showers until 08/2018, for CONTI+ CONGENIAL / CONGENIAL FIT / CONFRESH (Set thermostatic cartridges CONGENIAL showers until 08/2018)
CONZ3001202	CONTI+ Thermostatic cartridge Set for showers from 08/2018, for CONTI+ CONGENIAL / CONGENIAL FIT / CONFRESH (Set thermostatic cartridges CONGENIAL showers from 08/2018)
