CONTI+ CONBASE SLIM Concealed shower Round electric, Piezo Probes, Mains operation, No temp. mixing, Hygienic flushing, Chrom, DN20, FinishedAssembly Set CONE2150184851
CONBASE SLIM DN20
Ready-to-install set for electronic shower system, designed as a concealed shower.
Without mixer for connection to cold or pre-mixed water. For use in new buildings and renovations in public, semi-public and commercial sanitary facilities.

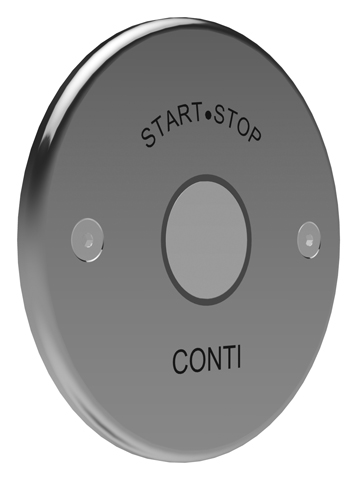

• Concealed shower ready-to-install set with round cover plate
• Cover plate: chrome-plated, two countersunk screws for fastening
• Electronic control of the shower function via piezo button with start/stop function; piezo button: red and blue colour ring
• Adjustable water flow time for the shower function
• Water line in DN20: two 6 V/DC ROBUST solenoid valves, bistable, for installation in the water line, connection distributor
• Usage-dependent interval hygiene flush to prevent stagnation
• Control via the service app possible
Design options
Note:
• Integration into the CNX water management system possible
When connecting via the service app, the BLE converter must be ordered separately.
Connection voltage (mains): 12-28 V/DC
Operating pressure: 1.5 - 5.0 bar
Flow rate DN20: 0.63 l/s
Water temperature in standard mode (max.): 70 °C
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse setting range: 12, 24 or 72 h, or can be disabled - all via piezo pushbutton setting; other sanitary rinse intervals can be set via the Service APP
Sanitary rinse factory setting: 12 h after the water flow was last triggered, 30 s water running time
Dimensions (ØxD): 95 x 5 mm
Electronic IP protection: IP68
