CONFLOW concealed shower stainless steel, cleaning stop CNX, angular cover plate, without TD, hygienic flushing via CNX, piezo push button, CNX Bus 30V/DC, stainless-steel, thermostat, DN20 cone2115281336

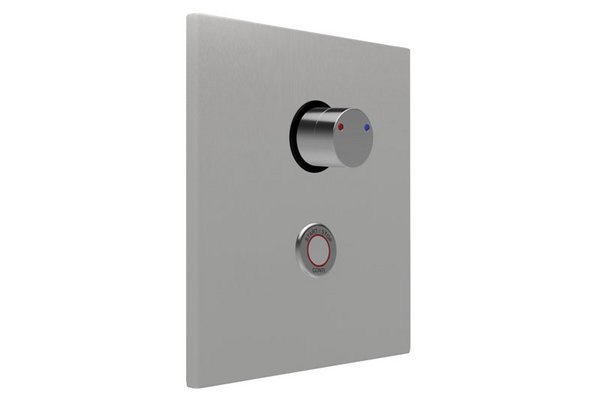

CONFLOW shower concealed stainless steel, angular, thermostat, piezo push-button, DN20 - ready-to-mount set

Ready-to-install set for electronic shower device, designed as a concealed shower in nominal width DN20. With thermostatic mixing device for connection to cold and hot water. Area of application in new construction and renovation in public, semi-public and commercial sanitary rooms.

• Concealed shower final assembly kit with angular cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust quadruple lock, multi sealing system with drainage system for condensation
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Water line: brass, with two simultaneously controlled solenoid valves 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• All functional parts can be disassembled from the front during maintenance work without removing the valve body
• Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring red, rosette chrome plated

Execution options:
CNX Water Management System:
Integration of the shower into the software-controlled Water Management System for the automatic depiction of hygiene, system and safety functions of electronic showers, lavatory faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and device groups. Tamper-proof documentation of all operating, action and function messages.
Water flow time (CNX):
The water flow time of the shower function can be set and disabled for electronic showers, integrated into the CNX Water Management System, through the software parameter settings per shower or shower group.
Hygienic flush (CNX):
The hygienic flush can be set and disabled for electronic showers, integrated into the CNX Water Management System, by the software parameter settings per shower or shower group as interval or calendar function.
Cleaning stop (CNX):
The operation stop (cleaning stop), interruption of the shower function, can be set in electronic showers, integrated into the CNX Water Management System, by the software parameter settings per shower or shower group as a calendar function.

Operating voltage (mains): 30 V/DC
Operating pressure: 1,5 – 5,0 bar
Water temp. standard operation (max.): 70 °C
Water temp. thermal disinfectio Short-term for therm. disinfection 80 °C
Flow rate DN20: 0,63 l/s
Water flow time setting range: 3 – 180 s
Water flow time factory setting: 30 s
Hygienic flush setting range: 12, 24 or 72 h, can be deactivated via setting on piezo switch, other hygienic flush intervals can be set via Service APP
Hygienic flush factory setting: 12 h after last water flow activation, 30 s water flow time
Electronic protection type: IP68

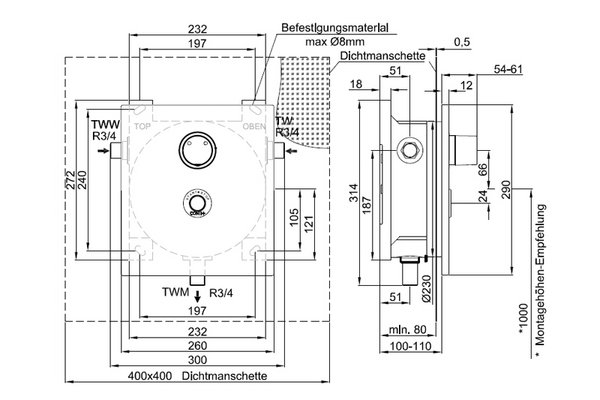

Dimensions (WxHxD): 260x290x12 mm
