CONFLOW concealed shower faucet stainless steel, without cleaning stop, angular cover plate, without TD, hygienic flushing, piezo push button, Mains operation, stainless-steel, thermostat, DN20 cone2115281200

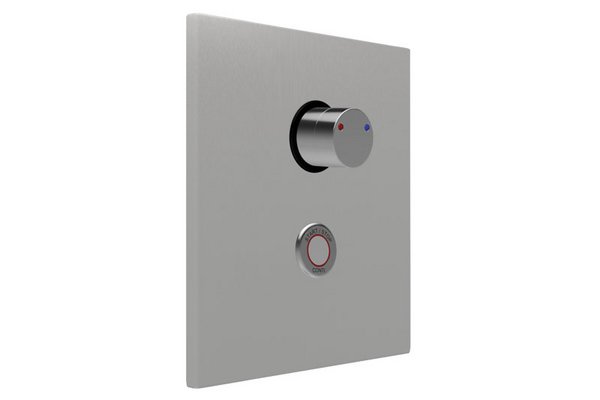

CONFLOW shower concealed stainless steel, angular, thermostat, piezo push-button, DN20 - ready-to-mount set
Ready-to-install set for electronic shower device, designed as a concealed shower in nominal width DN20. With thermostatic mixing device for connection to cold and hot water. Area of application in new construction and renovation in public, semi-public and commercial sanitary rooms.
• Concealed shower final assembly kit with angular cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust quadruple lock, multi sealing system with drainage system for condensation
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Water line: brass, with two simultaneously controlled solenoid valves 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• All functional parts can be disassembled from the front during maintenance work without removing the valve body
• Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring red, rosette chrome plated
Execution options:
Hygienic flush (mains):
Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by programming via the piezo switch or the Service APP per shower.
Operating voltage (mains): 12 V/DC
Operating pressure: 1,5 – 5,0 bar
Water temp. standard operation (max.): 70 °C
Water temp. thermal disinfectio Short-term for therm. disinfection 80 °C
Flow rate DN20: 0,63 l/s
Water flow time setting range: 3 – 180 s
Water flow time factory setting: 30 s
Hygienic flush setting range: 12, 24 or 72 h, can be deactivated via setting on piezo switch, other hygienic flush intervals can be set via Service APP
Hygienic flush factory setting: 12 h after last water flow activation, 30 s water flow time
Electronic protection type: IP68

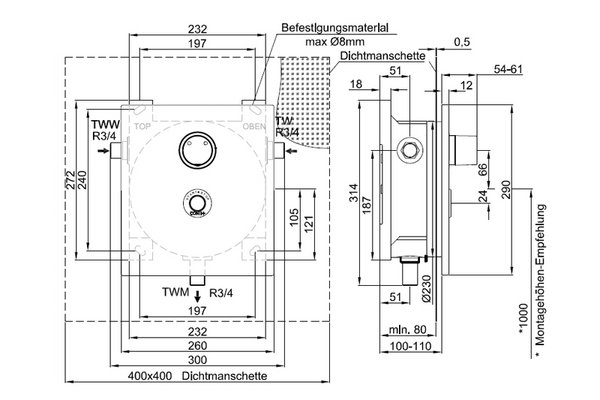

Dimensions (WxHxD): 260x290x12 mm
