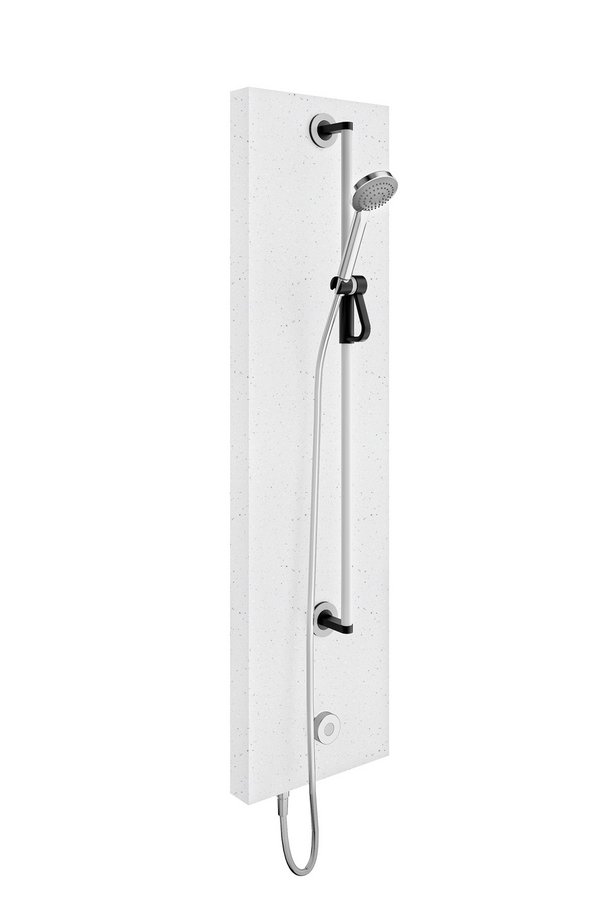

CONTI+ CONVARIO Shower panel for hand showers Solid surface material VARICOR®, electric, E-Control - Knob for mixing and start/stop function, APP, Mains operation, Thermostat-E, KWH - Cold Water Flush, According to customer requirements, DN15 CONE1241219288

High-end shower panel with fully electronic Thermostat-E

The CONTI+ CONVARIO shower element is equipped with the intelligent CONPRIMUS water line and the fully electronically controlled ‘Thermostat-E’ mixing valve, which has numerous hygiene and safety functions.
The connection (wall-mounted) is made to cold and hot water, and settings and programming can be carried out via the CONTI+ Service APP.

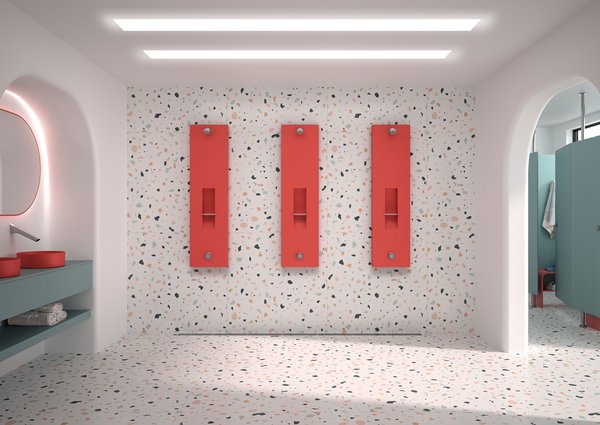

The CONVARIO shower panel made of high-quality solid surface material - your key to countless design options! Whether in RAL colours, an elegant marble look or for colour accentuation:
CONVARIO opens up completely new possibilities for the colour design of modern shower rooms.

With the fully electronic water circuit, the shower panel offers state-of-the-art technology. Hygiene flushes and separate cold and hot water flushes are possible without any problems, ensuring maximum cleanliness and comfort.

- Pre-installed, electronic high-end CONPRIMUS water line
- Proportional valve Mixing unit Thermostat-E
- Electronic scald protection
- E-Control electronic control unit, rotary/push button for mixing and start/stop function
- Optical temperature adjustment with LED display
- Non-linear temperature adjustment
- electronically adjustable memory temperature
- Hand shower pre-assembled on delivery
- Electronic hygiene flush
- Electronic cold water flush

Connection voltage (mains): 12-28 V/DC

Operating pressure: 2.5 - 5.0 bar
Flow rate DN15: 0.15 l/s (flow rate controller)
Water temperature in standard mode (max.): 70 °C
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse setting range: Disabled at the factory; can be set to 24, 48 or 72 h via piezo pushbutton or Service APP
Preset temperatures: Standby temperature when the piezo button is triggered 38 °C (can be adjusted from 100 % cold to max. 43 °C (temperature range) by turning the E-Control knob).
Anti-scald protection: If the cold water pipe fails, the water flow is stopped when it reaches 48 °C (factory setting - adjustable via Service APP and CNX; observe maximum water temperature)
Memory temperature setting: After the shower time has ended (or the shower has been stopped by pressing the piezo pushbutton again), the set temperature is saved for 30 s
Dimensions: 370x115 mm (WxD), height min. 1400 mm to max. 2500 mm (variable height):
Material: stainless steel
Electronic IP protection: IP68
