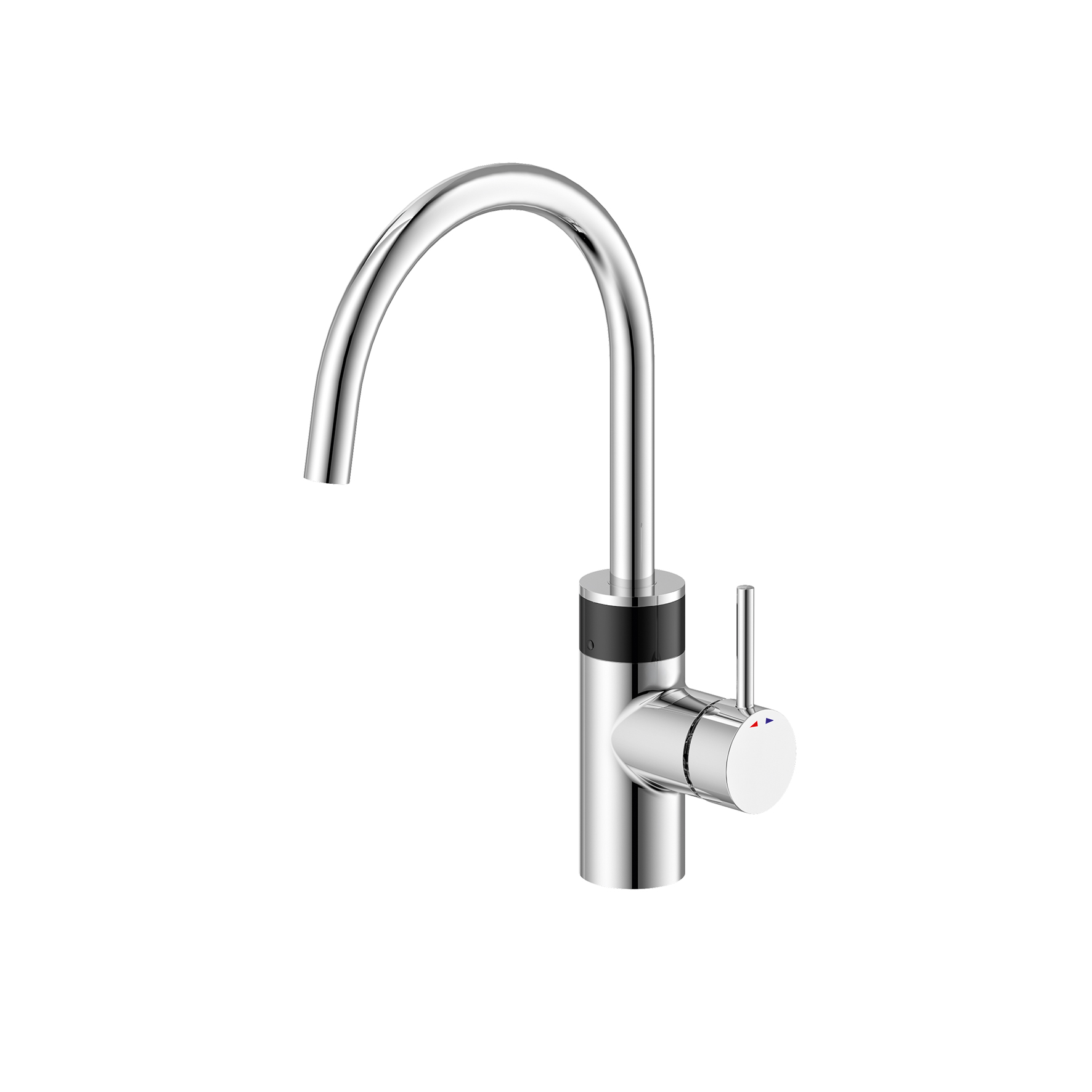

Hybrid kitchen faucet H10, chrome, single lever mixer with IR-sensor, mains operation exposed 131.810.11co
Hybrid kitchen faucet H10, single-lever mixer with IR sensor, with temperature-mixing, chromed
Single-lever and touchless, electronically controlled kitchen faucet:
• Hot and cold water supply connection with flexible high-pressure hoses
• Modular single-piece design with theft-proof battery box below the washbasin
• Sturdy brass housing, chromed
• Dual IR sensors (with automatic setting feature), microprocessor
• High swivel spout, 360°
• Temperature and water flow adjustable with single-lever with functionally reliable ceramic cartridge and adjustable scalding protection
• Adjustment of the infrared sensor at the position of the bowl (centre, left, right) by rotation
• Touchless, electronic function with automatic comfort switch, temperature adjustment for sensor operation over position of the lever in closed state
• Check valves and built-in filters
• Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus
• Continuous water flow adjustable with function key
• 12 or 24-hour hygienic flush activatable with function key
• Compatible with CNX and Service APP: control of stored operational data, settings and control functions
Notice:
When integrated into the CNX Water Management System, the CNX Converter 6 V must be ordered separately.
When using the Service APP, the BLE Converter must be ordered separately.
Mains supply : Plug-in transformer 110-240 V 50/60 Hz / 6 V
Operating pressure: 0,3 −10 bar
Flexible hoses: 350 mm
Flow rate: Single-lever mixer: approx. 11 l/min / 2,9 gpm (3 bar) Sensor: approx. 5 l/min / 1,3 gpm (1 – 5 bar)
Follow-up time: 1 sec. pre-set (adjustable with function key 0-10 sec.)
Continuous water flow and hygienic flush time: 2 min. pre-set (adjustable with function key 0,5-20 min.)
Temporary-off: 2 min. (fixed)
Sensor range: Activation of object recognition (approx. 250 mm) per close sensors (approx. 50 mm)
Sensor sensitivity: Automatic self-adapting sensor technology
Filters: 0,5 mm mesh size
Angle valve connection: G 3/8
Click-plus: Protruding function key with additional functions
Engineering standards: DIN EN 200; CE
