The proportional valve technology of the electronically controlled CONTI+ lino PRIMUS thermostats enables separate flushing of the cold, mixed and hot water lines. In addition to a sanitary rinse with mixed water and thermal disinfection with hot water, separate flushing of the cold water line can therefore also be carried out. This is not possible with conventional washbasin faucets. As a result, this technology developed by CONTI+ can almost completely rule out the possibility of microbiological contamination of the drinking water. The technology was first introduced for the CONPRIMUS shower panels and now – following intensive development work – can also be used for washbasin faucets. In this way, the CONTI+ lino PRIMUS is setting a hygiene standard without parallel.
TECHNICAL DETAILS
Mains operation, exposed design: plug-in power supply 230 V/12 V
Operating pressure: 0.3 – 10 bar
Flow rate (approx.): 3.8 l/min (3 bar)
Water inlet temperature (max.): 80 °C
Temperature limit (max.): 42 °C
Pressure hoses: 350 mm
Angle valve connections: G 3/8"
Strainers: 0.5 mm mesh width
Water run-on time: preset to 1 s (can be adjusted to 0 – 12 s with function key)
“Continuous on” function and sanitary rinse time: preset to 2 min (can be adjusted to 0.5 – 20 min with function key)
Electronic anti-scalding protection: if the cold water pipe fails, the water flow is stopped when the temperature reaches 48 °C (factory setting) – adjustable via Service APP and CNX; observe maximum water temperature
“Temporary off” function: fixed at 2 min
Standards: DIN EN 200, noise class I, P-IX 9575 / IA; CE
Electronic anti-scalding protection
The CONTI+ lino PRIMUS comes with integrated electronic anti-scalding protection. Depending on the hot and cold water supply temperatures, the water delivery temperature is adjusted in a range below 42 °C. If the water delivery temperature rises, for example in situations where there is an insufficient supply of cold water, the water flow is stopped electronically. Water can be drawn again once the system cools to below 42 °C.
The CONTI+ lino PRIMUS thereby ensures additional safety at the washbasin.

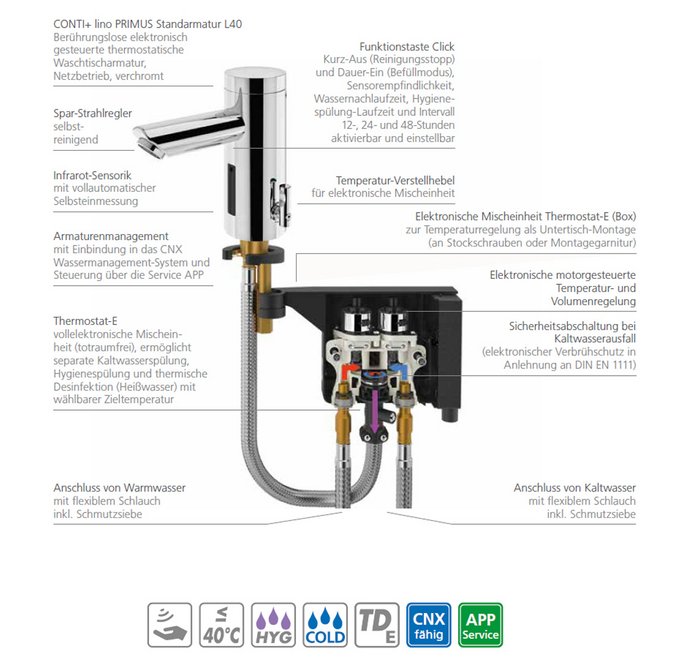

The CONTI+ lino PRIMUS faucet’s entirely unique hygiene function for separate flushing of the cold, hot and mixed water lines can be triggered with the CONTI+ CNX water management system or the CONTI+ Service APP. In addition to a sanitary rinse and thermal disinfection (hot water), separate flushing of the cold water line can therefore also be carried out.
As a result, this CONTI+ technology can almost completely rule out the possibility of microbiological contamination of the drinking water.
