Mechanical shower product ranges
Public, semi-public and commercial shower applications place high demands on functional safety, vandalism protection, hygiene and maintenance. The CONTI+ shower range has been consistently refined over many years and specifically tailored for this use with its modular system.
A wide range of modern, electronic shower panels with exposed and concealed designs for every need. Users depend upon reliable shower operation with efficient water usage but also demand guaranteed drinking water hygiene. Functions such as sanitary rinse and thermal disinfection meet the requirements of the German Drinking Water Ordinance.
All showers can be easily integrated into the CNX water management system, where they can be centrally managed, controlled and monitored.
SHOWER PANELS
CONGENIAL
Mechanical, vandal-proof, flexible and convertible
The automatic shut-off valve driven by oil hydraulics is a classic among CONTI+ mechanical shower systems. Thanks to the CONGENIAL water inlet, however, it is also possible to opt for a smooth, automatic shut-off driven by water hydraulics, or an on/off handle.
Housing made of stainless steel or acrylic composite, with or without shower niche. Optional: thermal sanitary rinse (thermal disinfection), mechanically via manual TD plug or electronically via bypass solenoid valve.
CONCEALED SHOWERS
CONGENIAL
Versatile, technologically advanced, high quality
Shower systems are an important feature of public and semi-public swimming pools and swimming areas. Properly functioning, high grade solutions for these facilities are now in more demand than ever. Our versatile CONGENIAL showers – made from either stainless steel or 2K acrylic composite – combine state of the art technology with sustainable and reliable quality.
With control via the Service APP or integration into the CNX water management system, all swimming pool hygiene measures can also be centrally managed, monitored and logged.
Five different shower heads and a handheld shower kit are available, with or without integrated shower niche, with cover cladding and mounting frame made of high quality 1.4301 stainless steel.

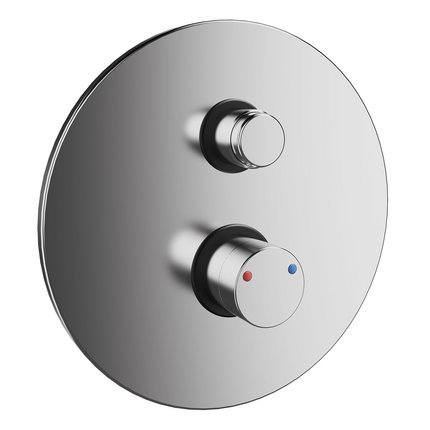

CONGENIAL FIT
Compact, attractive, versatile, convertible
With their compact design and wide range of technical options, the new generation of CONTI+ CONGENIAL FIT concealed showers is the ideal solution. This system is equipped with the compact CONBOX FIT concealed box and with an on/off handle and oil or water hydraulics in the mechanical version.
Also available as an electronic version with battery or mains operation. Optional thermal disinfection and external triggering of sanitary rinse (manual and electronic).
Optional: cleaning stop for long term water savings. Possibility of integration into the CONTI+ CNX water management system, and much more. Choice of an angular or round cover plate.
CONBASE
Fully fitted kit for mechanical shower controls, designed as a concealed shower with DN15 nominal diameter. Without a mixer for connection to cold or premixed water. For new build and refurbishment projects in public, semi-public and commercial washrooms. Based on the CONBASE water inlets – simply reliable for cold or premixed water.
Versions without thermostat, with adjustable water running time. Mechanical operation of the shower function via automatic shut-off pushbutton driven by oil hydraulics.
Equipped with an angular or round cover plate in stainless steel. Support frame for cover plate: ABS with EPDM lip seal. Concealed fixings, robust 4-way locking system.
CONBASE MINI
Small, robust, user friendly
Fully fitted kit for mechanical shower controls, designed as a concealed shower with DN15 or DN20 nominal diameter. Without a mixer for connection to cold or premixed water. For new build projects in public, semi-public and commercial washrooms.
In the case of mechanical hydraulic showers, the water running time of the shower function can be adjusted for each shower by means of an adjustment screw in the pushbutton.
EXPOSED SHOWERS
CONPRO
The versatile mechanical exposed shower
For connection to cold and hot water, with or without anti-scalding protection, intrinsically safe. Manual thermal disinfection option. All water-bearing components are made from hygienic material in accordance with the requirements of the German Drinking Water Ordinance. Integral non-return valves and stainless steel strainers.
Safety lock with fixed end-stop (with override for manual thermal disinfection) and anti-scalding protection in case of cold water failure; manual thermal disinfection is also possible.
Integral stop valve with ceramic head, exchangeable mixed water outlet at the bottom/top, filter seals made from stainless steel, both chrome plated, and much more.
