Conversion kit showers mechanically or electronically to electronic self-closing function, Mains operation, DN15 cons01440001000
Shower conversion set, mechanical or electronic to electronic self-closing function
Conversion to electronic self-closing function and thermostatic mixing device with anti-scald protection, user-dependent and adjustable hygiene flush, for connection to cold and hot water, for wall installation, for conversion of existing CONTI+ mechanical or electronic showers before production period 2007. Compatibility must be checked in advance.
Electronic shower device with thermostatic mixing device including anti-scald protection:
• adaptive multifunctional water section CONGENIAL, for insertion in flush-mounted box
• equipped for electronic self-closing function
• Hygienic rinsing function possible
• Setting of basic functions without additional devices / software / remote control

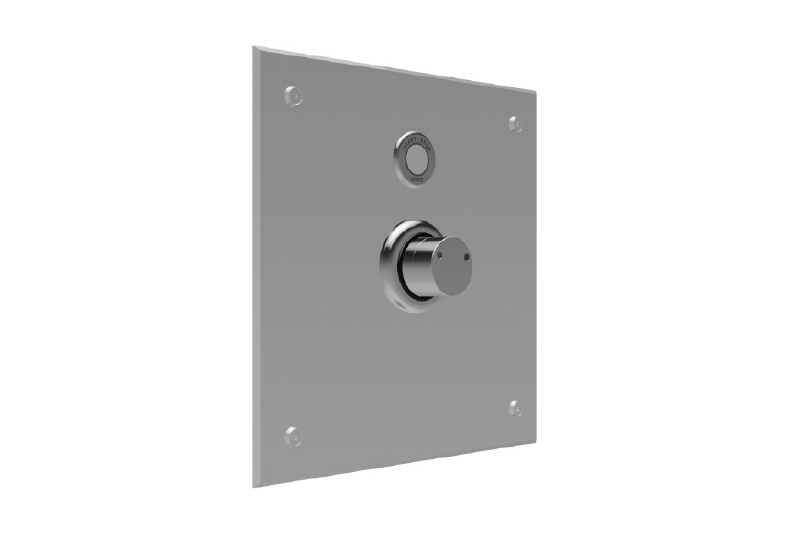

• Cover plate in angular design
• for connection to cold and hot water
• for wall mounting
Consisting of:
• Fitting body: dezincification-resistant pressed brass, as high-quality thermostatic battery, visible components made of solid, bright chrome-plated brass, with safety stop, choice of temperature corridor, integrated backflow preventers in the bypass, backflow preventers and strainer cartridges for water inlets, all functional parts can be dismantled without dismantling the fitting body for service work
• Cover plate: stainless steel 1.4301, surface: matt brushed, with sealing
• Connection set with pre-shut-off valves
Operating pressure: 1,5 – 5,0 bar
Water temperature (max.): 70 °C (kurzzeitig, zur TD, 80 °C)
Flow rate: 0,15 l/s
Flow rate TD: 0,15 l/s
Water flow time setting range: 3 – 180 s
Water run time Factory setting: 30 s
Hygiene flushing Setting range: 12, 24 or 72 h, can be deactivated via setting on piezo button, other hygiene flush intervals can be set via service APP
Hygiene flush Factory setting: 12 h after last water flow triggering, 30 s water run time
Accesses: Rp 1/2
Departure: G 3/4 B mit Adapterstück auf G 1 B
Protection class: IP68 (electronic components)

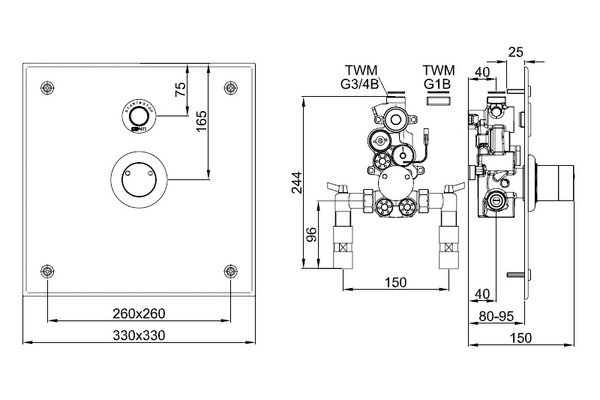

Dimensions (WxHxD): 330x330x5 mm
