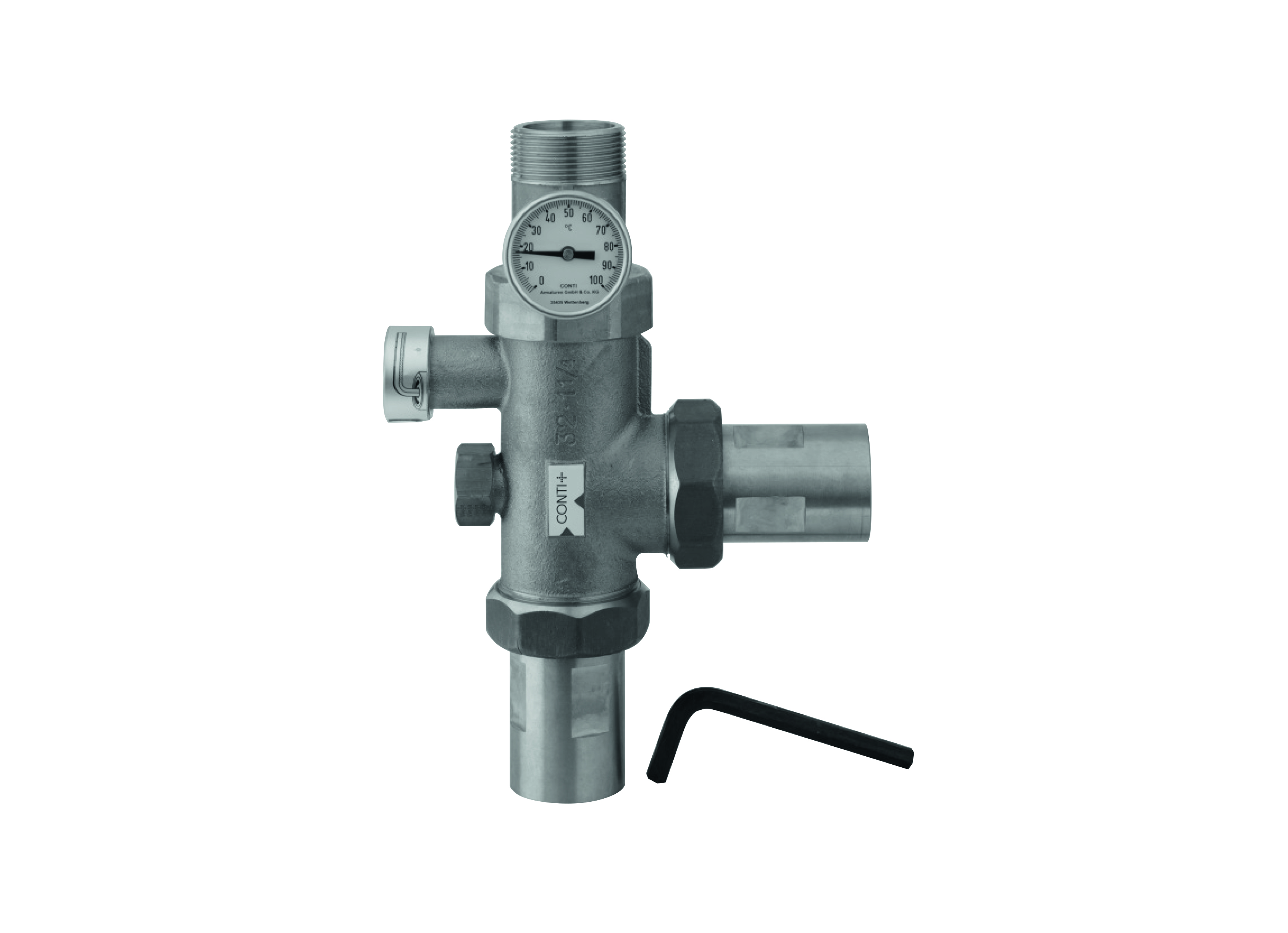

CONTI+ CONTHERM thermostatic mixer faucet Mechanically, 55 °C, for adjusting premixed water distribution, DN25 CONM92504001025
CONTHERM Thermostatbattery 55 °C, DN25
Thermostat battery, with scalding protection, for providing hot water with a constant temperature.

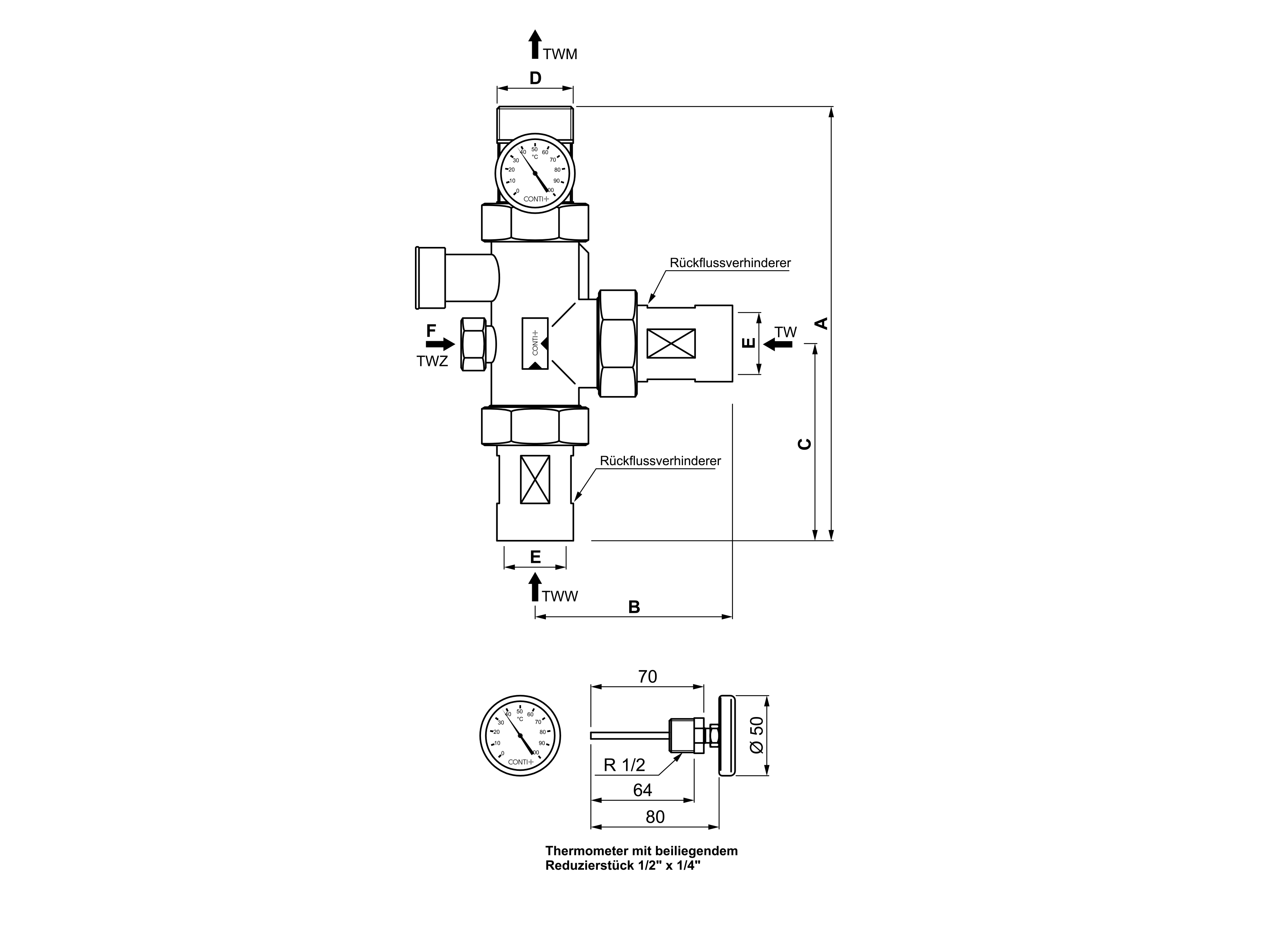

Consisting of:
• 1 thermostatic mixer, gunmetal body, expansion material-based functional part, socket wrench operation and standard temperature setting range of 45 - 65 °C
• 2 connection fittings with integrated backflow preventer
• 1 Outlet fitting with bimetal dial thermometer, 0 - 100 °C, threaded connection G 1/4 B, immersion sleeve length 75 mm
Operating pressure (max.): 6.0 bar
Temperature setting range: 45 - 65 °C (factory setting 55 °C)
Domestic hot water (max.): 80 °C
