CONTI+ lino SofTouch washbasin faucet Mechanically, Self-closure, No temp. mixing, Chrom CONM8150104000
lino SofTouch ST20, chromed, without mixing
Hydraulic controlled self-closing faucet.
• For connection to cold or premixed water
• Casing and press button: stainless steel verchromt
• Reliable hydraulic cartridge
• Vandal-proof hydraulic cartridge due to limited actuation path of press button
• Depending on activating duration water run time could be adjusted (run time 6-10 s at activating duration of 0,2 s)
Operating pressure: 0.5 - 10.0 bar
Flow rate: 6 l/min (3 bar)
Water temperature (max.): 80 °C
Pressure hoses: Approx. 350 mm
Angle valve connections: G 3/8
Strainers: 0.5 mm mesh width
Triggering force (max.): 15 N (independent of operating pressure)
Standards: DIN EN 200, EN 816; CE

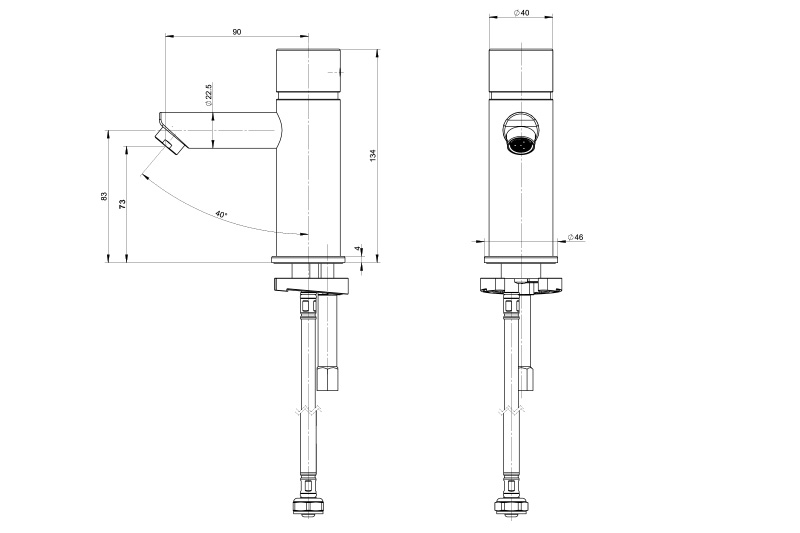

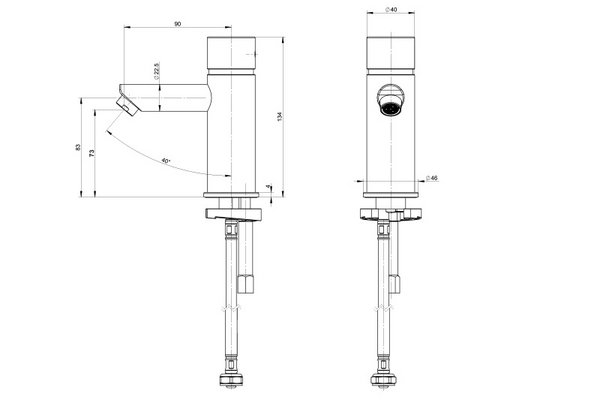

Flow angle: 40°
Projection: 90 mm
Spout height: 73 mm
Outlet: fixed
