CONTI+ CONBASE SLIM Concealed shower Round electric, Piezo Probes, Battery operation, No temp. mixing, Hygienic flushing, Chrom, DN20, FinishedAssembly Set CONE2150181100
CONBASE SLIM concealed shower, chromed, round, piezo switch, DN15 - final assembly kit
Final assembly kit for electronic shower, device designed as concealed shower in nominal diameter DN15. Without mixing device for connection to cold ore premixed water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.

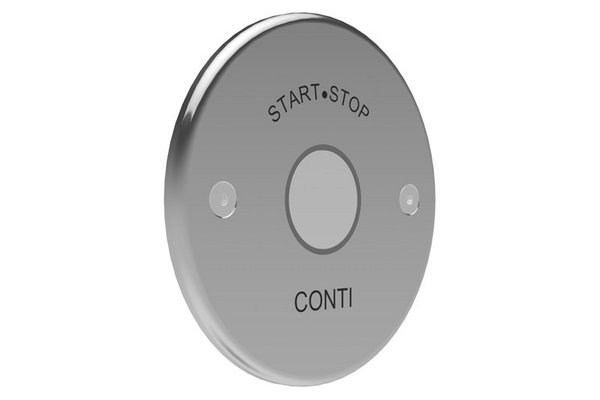

• Concealed shower final assembly kit with round cover plate

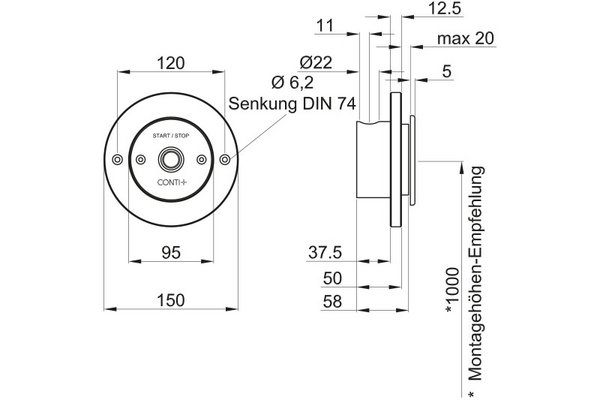

• Cover plate: chromed, dimensions (ØxD): 95x5 mm, two countersunk screws for fixing
• All functional parts can be disassembled without dismantling the valve body during maintenance work
• Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring red and blue
• Control via service APP possible
Battery:
6 V/DC Lithium battery waterproof encased
Execution options:
Water path in DN20:
Two solenoid valve 6 V/DC ROBUST, bistable, for mounting in the water path, connection distributor
Hygienic flush (battery):
Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by programming via the piezo switch or the Service APP per shower.
Connection voltage (battery): 6 V/DC
Operating pressure: 1.5 - 5.0 bar
Flow rate DN20: 0.63 l/s
Water temperature in standard mode (max.): 70 °C
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse setting range: 12, 24 or 72 h, or can be disabled - all via piezo pushbutton setting; other sanitary rinse intervals can be set via the Service APP
Sanitary rinse factory setting: 12 h after the water flow was last triggered, 30 s water running time
Dimensions (ØxD): 95 x 5 mm
Electronic IP protection: IP68
