CONTI+ CONFLOW Concealed shower Round stainless steel, electric, Piezo Probes, Battery operation, Hygienic flushing, DN20, FinishedAssembly Set CONE2110183100
CONFLOW shower concealed stainless steel, round, piezo push-button, DN20 - ready-to-mount set
Ready-to-install set for electronic shower device, designed as a concealed shower in DN20. Without mixing device for connection to cold or premixed water. Area of application in new construction and renovation in public, semi-public and commercial sanitary rooms.

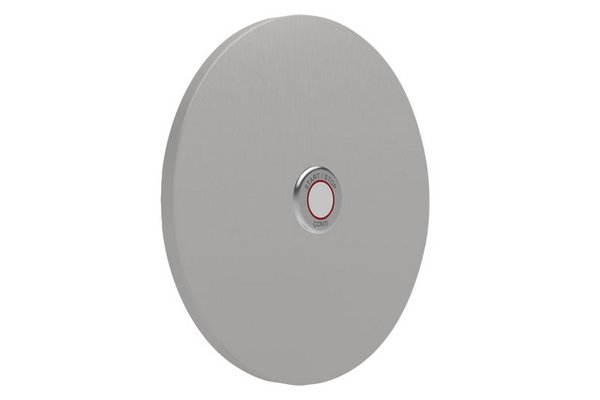

• Concealed shower final assembly kit with round cover plate
• Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel
• Concealed mounting, robust quadruple lock, multi sealing system with drainage system for condensation
• Implementing functional elements and thermostat incl. EPDM sealing rings
• Water section in sliding spout technology, for stress-free installation of the two simultaneously controlled solenoid valves 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Electronic operation of the shower function via piezo switch with start/stop function, piezo switch: colour ring blue, rosette chrome plated
• Control via service APP possible
Execution options:
Hygienic flush (battery):
Hygiene flushing can be carried out on electronic showers by programming via the piezo pushbutton per shower.
Connection voltage (battery): 6 V/DC
Operating pressure: 1.5 - 5.0 bar
Flow rate DN20: 0.63 l/s
Water temperature in standard mode (max.): 70 °C
Water running time setting range: 3 - 180 s
Water running time factory setting: 30 s
Sanitary rinse setting range: 12, 24 or 72 h, or can be disabled - all via piezo pushbutton setting; other sanitary rinse intervals can be set via the Service APP
Sanitary rinse factory setting: 12 h after the water flow was last triggered, 30 s water running time

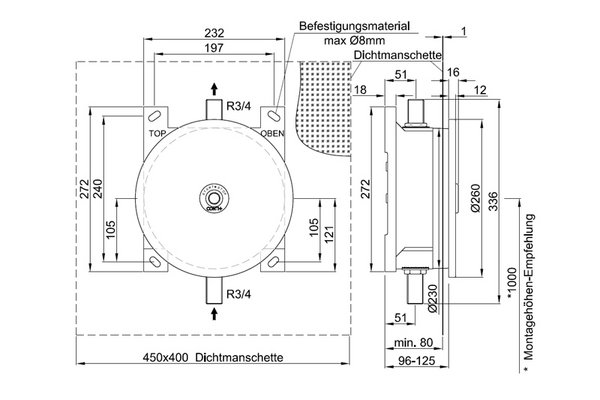

Round dimensions (ØxD): 260 x 12 mm
Electronic IP protection: IP68
