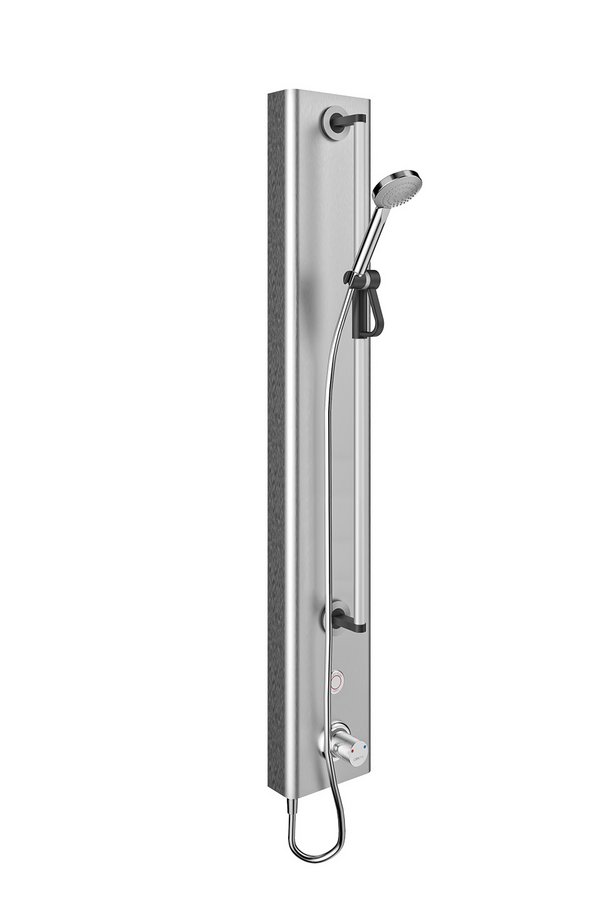

CONCASH 2.0 shower panel stainless steel, without cleaning stop, without soap tray, without TD, hygienic flushing, piezo push button, Mains operation, thermostat, DN15, paid water cone0811211270
CONCASH 2.0 shower panel stainless steel, thermostat, piezo switch, DN15, mains, paid water release
Electronic shower faucet for electronically controlled paid water release. Designed as shower panel in nominal diameter DN15. With thermostatic mixing device for connection to cold and hot water. Application in new construction building and renovation in commercial, semi-public and public sanitary facilities.
• Stainless steel shower panel. Model with two wall brackets, including mounting material
• Cover and wall bracket made of stainless steel 1.4301
• All visible surfaces made of brushed stainless steel
• Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable
• Multifunction tool for maintenance work
• Upgrade and retrofitting functions
• Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer, thermostat handle: chromed brass
• Visible components made of solid, chromed brass, with safety stop
• Choice of temperature and setting range
• Integrated check valve in the bypass and check valve and strainer cartridges for water inlets
• All functional parts can be dismantled from the front during maintenance work without removing the valve body
• Electronic operation of the shower function via piezo switch after release by coin validator
Paid water release:
The water flow time and payment parameters can be accessed via the coin validator.
Mains:
Power supply over 24 V/DC power supply for surface-mounted version in installation box or for DIN top-hat rail mounting
Execution options:
Cover version:
Without seamlessly integrated soap dish.
Hygienic flush (mains):
Hygienic flush (electronic): the hygienic flush is carried out by CONCASH showers through programming via the coin validator.
Operating voltage (mains): 24 V/DC
Operating pressure: 1,5 – 5,0 bar
Water temp. standard operation (max.): 70 °C
Flow rate DN15: 0,15 l/s (flow rate regulator)
Water flow time setting range (max.): 1000 min
Hygienic flush setting range via the coin validator: 0 –240 s
Electronic protection type: IP68

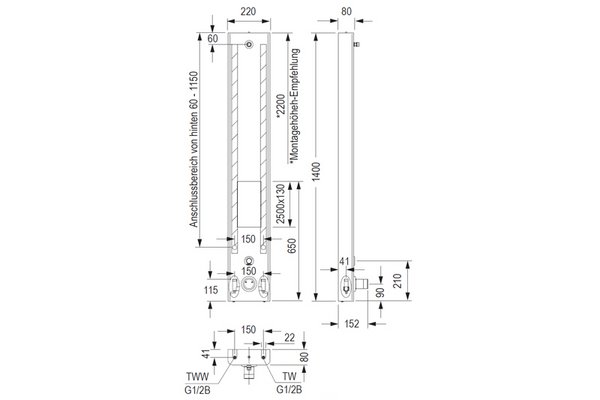

Dimensions (WxHxD): 220x1400x80 mm
