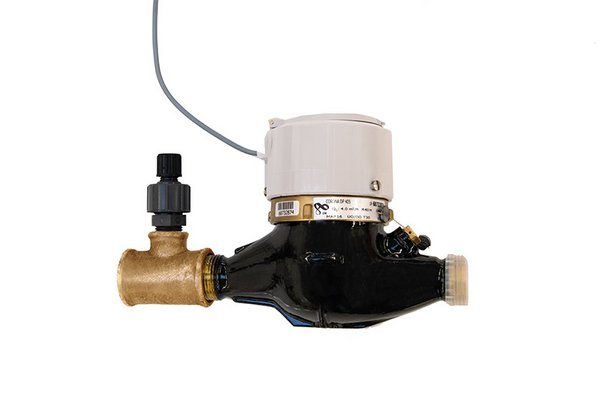

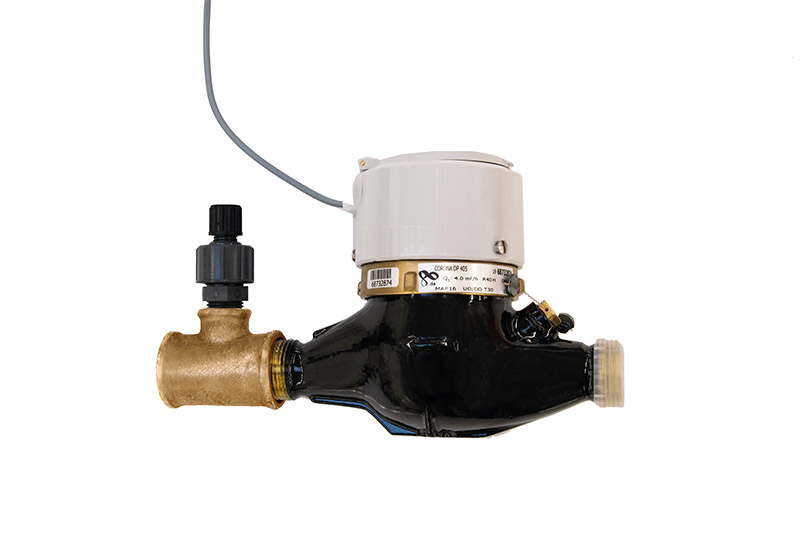

CONTI+ oXan® zero Connection kit Dosing system Water meter, Dosing Tee, DN20 CONB25204050
CONTI+ Connection set dosing system
Connection set for CONTI+ dosing system for dosing CONTI+ oXanTM zero in Drinking water installations.
Technical data
DN20
Water meter DP 405-5 DN20 G1 Ms
1 l/pulse Q max = 5,000 l/h readable
T-piece reduced R1 – R 1/2 – R1 PN25
Socket M12x1 A-coded
Screw terminal connection 4-pole
Nominal diameter: DN20
Height: 124 mm
Height1: 114 mm
Width: 95 mm
Structural lengt: 231 mm
