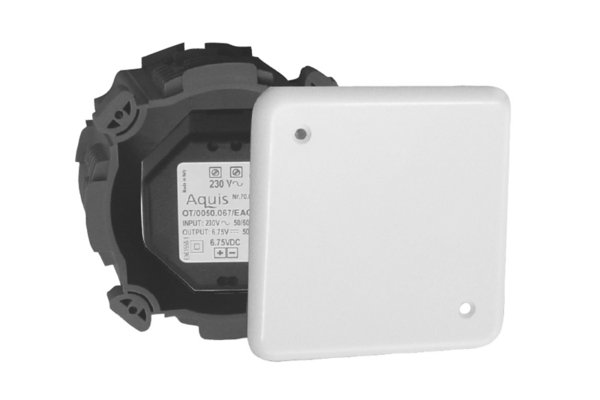

Flush-mounted splitter set with fl ush-mounted outlet for multiple installations 550.042.00
Concealed splitter set with flush-mounted outlet for multiple installations
• Exclusively for use with the flush-mounted central power supply units for multiple installations (550.041.00 or 550.045.00) with VARIOconnect
• Not compatible with lumino L10i and L10c
• One splitter set is required for each connected unit and bypass solenoid valve
Consisting of:
• Concealed box with white cover
• Splitter for voltage range 12 VAC/VDC - 28 VAC/VDC
• 3 Terminals (1x input, 1x output looped, 1x 6 V output)
• Installation cable 3000 mm with plug-in connector for faucets/flush valves
