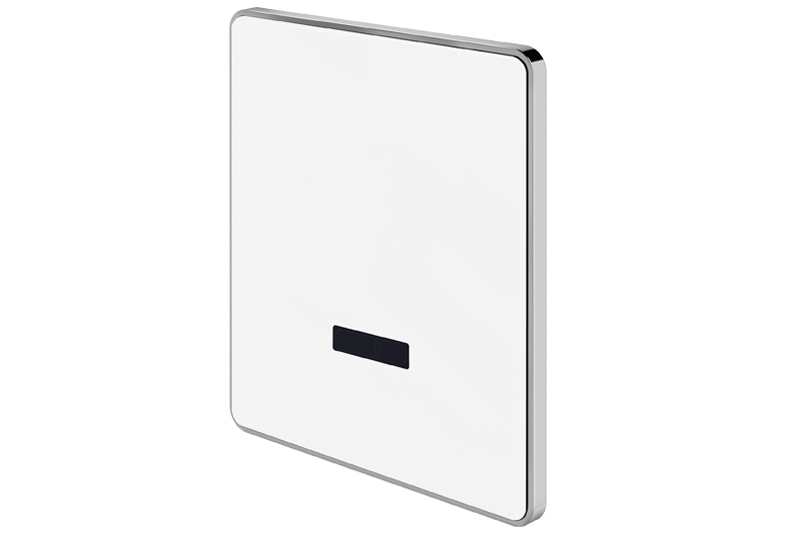

CONTI+ ultra Urine alarm valve flush-mounted electric, Infrared sensor, VARIOconnect, Glass / White, FinishedAssembly Set, - CNX / APP - 260.016.31
ultra urinal flush valve U18, with IR sensor, white/chromed - final installation set
Touchless, electronically controlled urinal flush valve for concealed installation:
• Front plate made of glass, white
• Holding frame: Chrome plated brass
• Reliable solenoid valve (minimal level of water pressure surge)
• Double infrared sensors (with automatic setting feature!), microprocessor
• Dynamic sensor: constantly adjusts the optimum range
• Flush time and sensor sensitivity adjustable with Touch
• Temporary-off (cleaning) and short-on (manual flush) activatable with Touch
• 24- or 48-hour hygienic flush and pre-rinse activatable with Touch
• Variable installation in combination with urinal shell set U2L or U3L (not included)
• Compatible with CNX and Service APP: control of stored operational data, settings and control functions
• Compatible with Service APP: Control of stored operational data, settings and control functions
Notice:
When integrated into the CNX Water Management System, the CNX Converter 6 V must be ordered separately.
When using the Service APP, the BLE Converter must be ordered separately.
VARIOconnect: For single and multiple power supply and data connection
Operating pressure: 0.3 - 10.0 bar
Flow rate: Approx. 20 l/min (3 bar)
Strainer: 0.5 mm mesh width
Sensor sensitivity: Continuous automatic self-calibration
Flush duration: Preset to 7 s (can be adjusted from 2 to 30 s via touch control)
Residence time: Approx. 10 s (fixed)
Temporary off function: approx. 2 min (fixed)

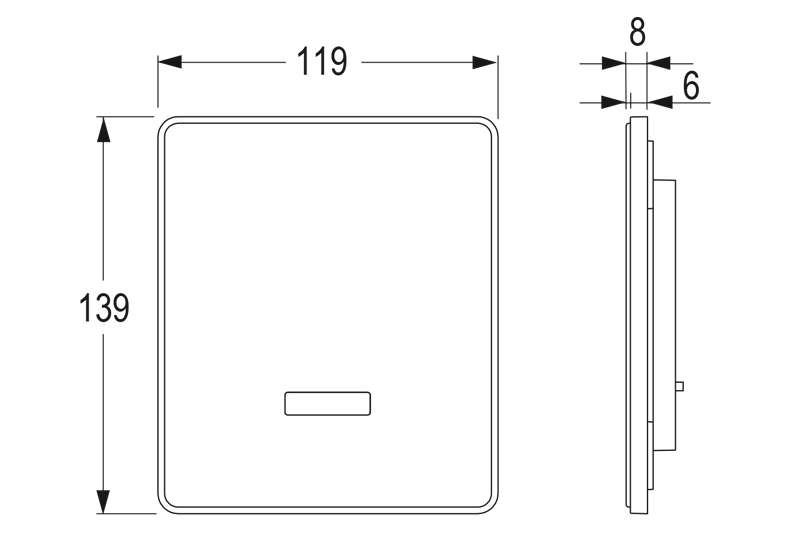

Dimensions (WxHxD): 119 x 139 x 6 mm
Standards: DIN EN 200; CE
