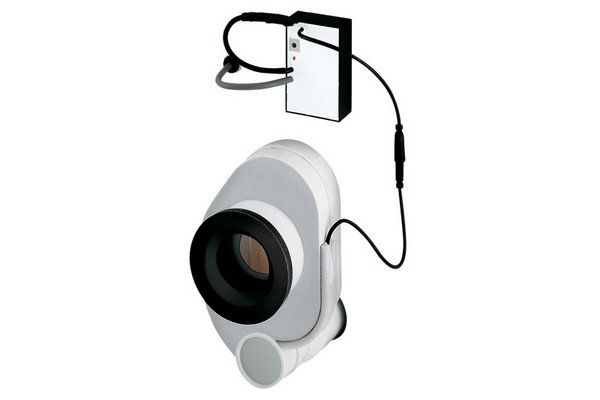

CONTI+ iQ UrinalSiphon control Power supply flush-mounted, 2-8l 230.010.00
urinal flush control S10, siphon regulator - final installation set
Touchless, invisible and inaccessible electronically controlled urinal flush control for mounting behind the urinal (not included).
• 1x solenoid valve 6 V/DC inlcuded

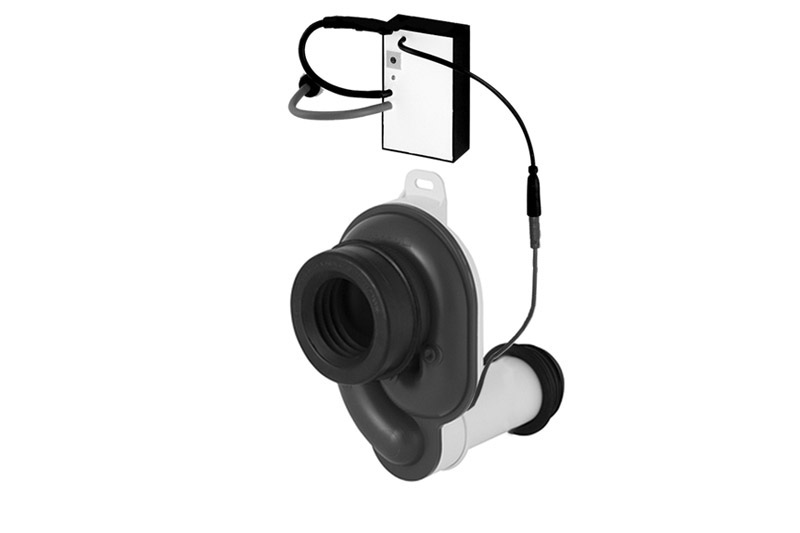

Consisting of electronics and siphon:
• Siphon with outlet DN40 for flush volume (urinal): 2 - 8 l/min (article number 230.010.00)
• Invisible installation behind the urinal
• Automatic adjustment to conditions at place of use
• Regular flushing after use within 10 sec.
• Stop valve, filter pre-mounted in shell set U3S
• Stadium operation: frequent usage leads up to 1 flush per minute
• Variable installation in combination with urinal shell set U3S or U2S (not included)
• Overflow protection: no flushing at fully and partial blockage
• Measurements at the siphon, no contaminations of the sensor
• All functions pre-set
• No use for urinals made of stainless steel
Mains supply:
Plug-in transformer 110 - 240V 50/60Hz / 6 V (transformer integrated in electronic module)
Mains operation, concealed design: 230 V/AC (transformer integrated in electronic unit)
Operating pressure: 0.3 - 10.0 bar
Flow rate: Approx. 20 l/min (3 bar)
Flush duration: Preset to 7 s (can be adjusted from 1 to 14 s)
Triggering time: approx. 10 s after use
Standards: DIN EN 200; CE
