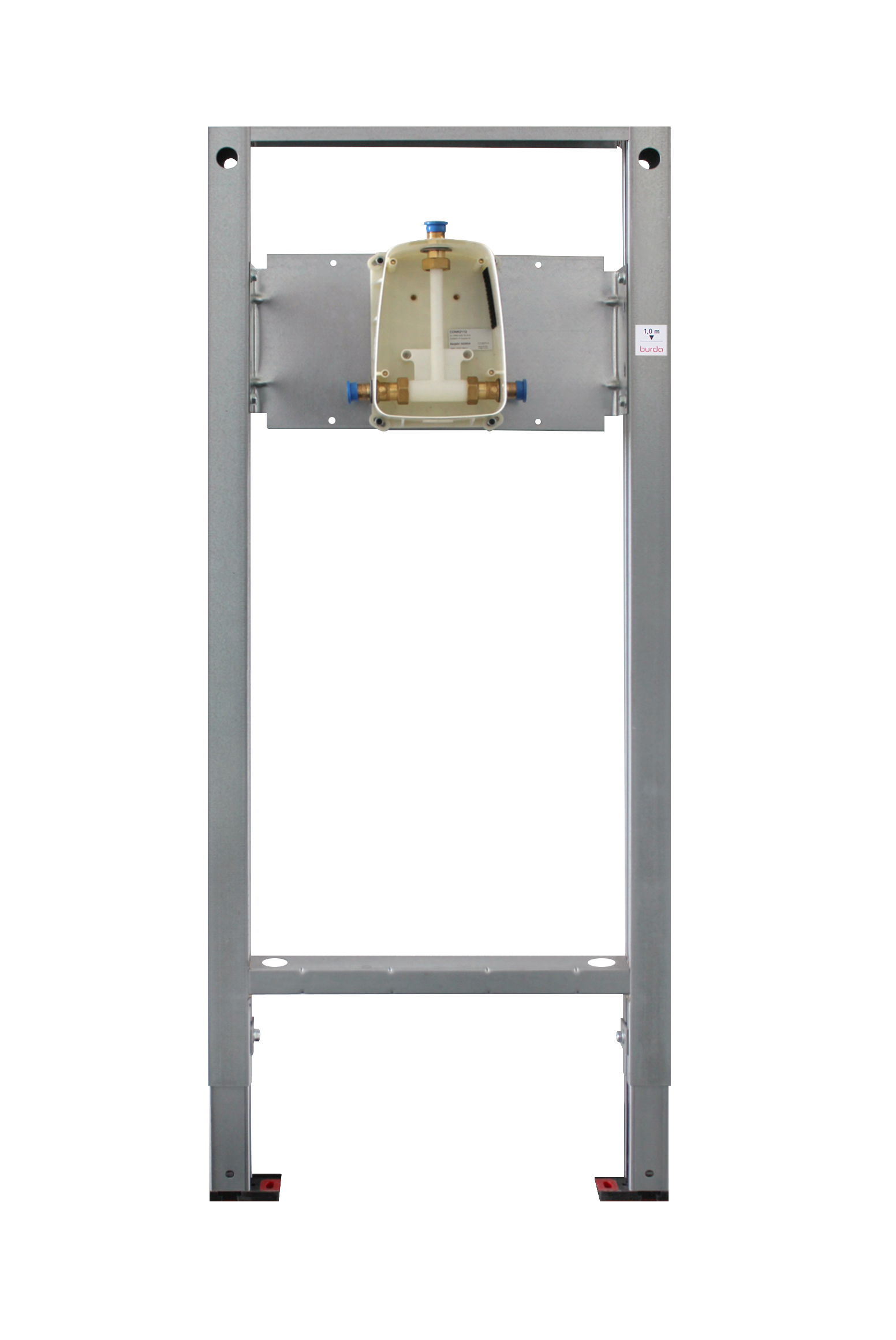

CONTI+ Pre-wall mounting system with raw assembly set, for concealed showers CONGENIAL FIT, Raw assembly set 220.028.00
(raw installation set) For installation in a stud wall in accordance with DIN 18183 or in
in conjunction with wall bracket (accessory) as a single element in pre-wall installation
Can be used.
- Galvanised, self-supporting and sound-decoupled 48 mm steel frame

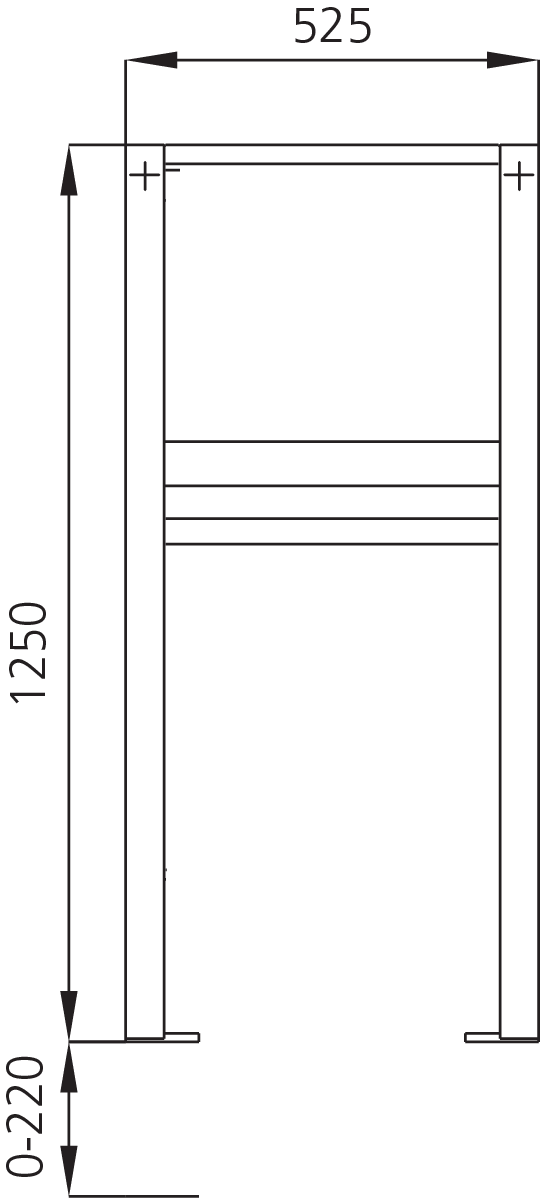

- Galvanised foot supports, adjustable 0-22 cm
- Swivelling plastic feet, depth suitable for installation in U profiles UW 50 and UW 75
- Crossbar fitting height-adjustable
Scope of delivery:
- Pre-assembled CONTI+ CONBOX FIT pipe installation set for shower
- 1 connection bracket R 1/2
- Fixing material
Sound insulation according to DIN 4109
Sound insulation: DIN 4109
