maxx lavatory faucet M20, Touch, chrome, IR-sensor, battery, no temp. mixing, G3/8 131.040.11

Automatic mixed water flush of electronic faucets – with demand-dependent triggering at intervals, time control or a calendar function, as required, either integrated in the CNX water management system or accessed via the Service APP.Infrared sensor to trigger the water flow.

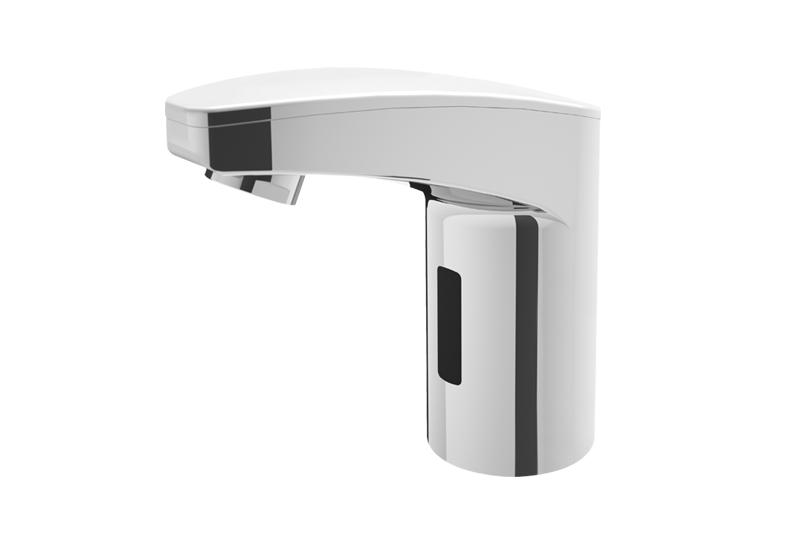

maxx lavatory faucet M20, with IR sensor, without temperature-mixing (for cold or premixed water), chromed

Touchless, electronically controlled lavatory faucet:
• For connection to cold or premixed water
• Modular single-piece design without separate installation box, sturdy metal housing, chromed
• Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator
• Infrared sensors with automatic setting feature, microprocessor
• Follow-up time, sensor-sensitivity adjustable with Touch
• Cold water supply connection with flexible hose and built-in filter
• Temporary-off (cleaning) and continuous water flow time (filling of basin) adjustable with Touch
• Continuous-on and hygienic flush time adjustable with Touch
• 12, 24 or 48-hour hygienic flush adjustable with Touch
• Compatible with CNX and Service APP: Control of stored operational data, settings and control functions
• Compatible with Service APP: Control of stored operational data, settings and control functions

Battery: 6 V Lithium CRP2 - standard; life time up to 4 years
Operating pressure: 0,3 – 10 bar
Water temperature (max.): 80 °C
Flow rate (approx.): 6 l/min / 1,6 gpm (3 bar)
Follow-up time: 1 s pre-set (adjustable with function key 0-10 s)
Continuous water flow and hygienic flush time: 2 min pre-set (adjustable with function key 0,5-20 min)
Temporary-off: 2 min. (fixed)
Sensor sensitivity: Automatic self-adapting sensor technology
Built-in filter: 0,5 mm mesh size
Aerator: Economic aerator, CASCADE (self-cleaning)
Flexible hose: 350 mm
Angle valve connection: G 3/8
Engineering standards: DIN EN 200; CE
