CONTI+ iQ washbasin faucet electric, Infrared sensor, Battery operation, Temp. mixing, Chrom 100.000.11
iQ lavatory faucet A10, with IR sensor, with temperature-mixing, chromed
Touchless, electronically controlled lavatory faucet:
• For connection to hot and cold water
• Modular single-piece design without separate installation box, sturdy metal housing, chromed
• Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator
• Dual infrared sensors (with automatic setting feature), microprocessor
• Hot and cold water supply connection with flexible high-pressure hoses
• Follow-up time and sensor sensitivity adjustable with function key
• Check valves and built-in filters
• Temperature adjustable or fixable (vandal-resistant construction)
• Adjustable hot water limitation (mechanically)
• 12, 24 or 48-hour hygienic flush activatable with function key
• Compatible with CNX and Service APP: Control of stored operational data, settings and control functions
• Compatible with Service APP: Control of stored operational data, settings and control functions
Notice:
When integrated into the CNX Water Management System, the CNX Converter 6 V must be ordered separately.
When using the Service APP, the BLE Converter must be ordered separately.
Battery: 6 V lithium CRP2 - commercially available; service life of up to 4 years
Operating pressure: 0.3 - 10.0 bar
Flow rate: Approx. 6 l/min (3 bar)
Water temperature (max.): 80 °C
Pressure hose: 350 mm
Angle valve connections: G 3/8
Strainers: 0.5 mm mesh width
Sensor sensitivity: Continuous automatic self-calibration
Water run-on time: Preset to 1 s (adjustable to 0 - 10 s with function key)
Continuous on function and sanitary rinse time: Preset to 2 min (can be adjusted from 0.5 to 20 min with function key)
Standards: DIN EN 200; noise class I; PA-IX 28707 / IO; CE
Aerator: Economy aerator, cascade (self-cleaning)

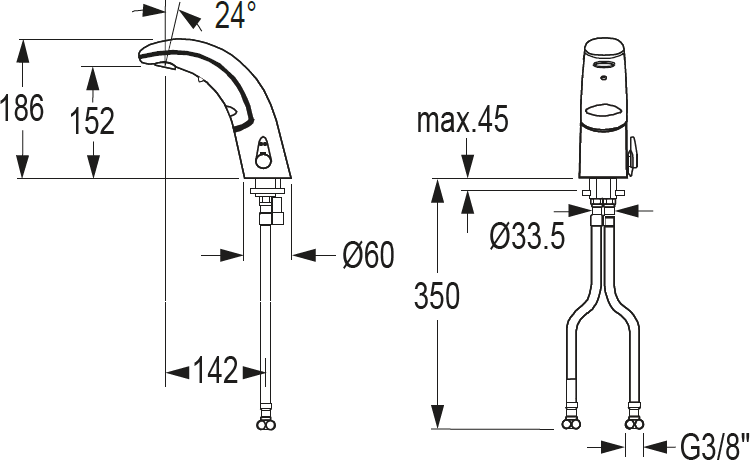

Projection: 142 mm
Spout height: 152 mm
Outlet: fixed
Click: Recessed function button - without additional functions
